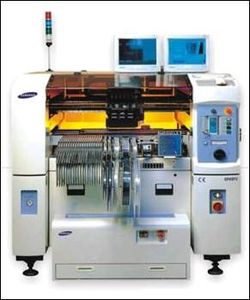

Smt Pick and Place Machine

We are offering smt pick and place machine.
Main spec:
maximum circuit board area: 357x367mm
xy maximum range of movement: 432x515mm
z-axis maximum range of movement: 20mm
smd maximum speed: 5500
the average placement rate: 4000
positioning accuracy: 0.01mm
nozzle buffering range: 4.5
power: 220v, 50hz
compressed air: 0.5-0.6mpa
average power: 800w
belt feeders: 8,12,16,24mm
scope: adaptation 0402,0603,0805,1206, diodes, transistors, sot (9x9mm), etc.
Number of feeders feeding stations: 32
use motor: stepper motor
placement head: double
movement of the drive system: high-speed dsp digital high voltage driver
element angle: 0-360 degrees at any angle, synchronous rotation movement
visual system: automatic identification correction on the fly, automatically fill parts
vision camera: high-speed industrial grade ccd hd
vision operating system: industrial pc
x y operation modes: a generation of linear interpolation linkage v201303
operating system: independent research and development
programming mode: point mannequin programming, visual programming, pcb files, etc. Coordinate import
visual programming camera: high-resolution color infrared ccd
visual display: 15-inch color hd display
product weight: 125kg
dimensions: 1010x1030x1100mm
