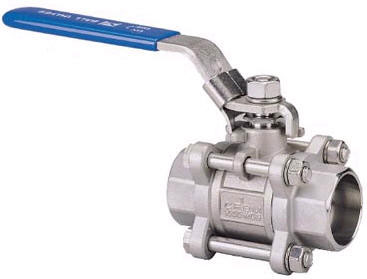

Socket Weld Ball Valve

Listing ID #129549

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We offer quality socket weld ball valve in a variety of shapes and sizes. These socket weld ball valves are manufactured using top quality raw materials and used for numerous industrial purposes. This range of socket weld ball valve is offered to the clients at competitive prices.

View More Details

Send Enquiry

Product Details

We offer quality socket weld ball valve in a variety of shapes and sizes. These socket weld ball valves are manufactured using top quality raw materials and used for numerous industrial purposes. This range of socket weld ball valve is offered to the clients at competitive prices.

Salient Features	Heavy directional black fenolic handle or lever handle Panel mounting and locking devices are available as an option Internally loaded stem with shoulder to prevent stem blow-out Low operating torque Floating ball design ensures leak proof shut-off at high pressure Floating ball is machined from base stock Handle with arrow indicates flow direction allows quick operation and low torque with 1/4 turn. Encapsulating ball seats are uniformly forced to form tight seals against ball and body cavity and virtually allow no dead volume Integral ball-stem is machined form one single piece and best suited to encapsulating ball seals
Specifications	Size : 1/4 to 2" NB in screwed end, 1/2 to 4" NB in flanged end End connection : NPT/BSP/ SW/BW and Flanged as per BS-10, ASA and DIN Standards Material : SS 316, SS 304, CS, Brass with SS working parts Pressure Rating : 300 psig to 5000 psig

Salient Features

Heavy directional black fenolic handle or lever handle
Panel mounting and locking devices are available as an option
Internally loaded stem with shoulder to prevent stem blow-out
Low operating torque
Floating ball design ensures leak proof shut-off at high pressure
Floating ball is machined from base stock
Handle with arrow indicates flow direction allows quick operation and low torque with 1/4 turn.
Encapsulating ball seats are uniformly forced to form tight seals against ball and body cavity and virtually allow no dead volume
Integral ball-stem is machined form one single piece and best suited to encapsulating ball seals

Specifications

Size : 1/4 to 2" NB in screwed end, 1/2 to 4" NB in flanged end
End connection : NPT/BSP/ SW/BW and Flanged as per BS-10, ASA and DIN Standards
Material : SS 316, SS 304, CS, Brass with SS working parts
Pressure Rating : 300 psig to 5000 psig

Company Details

Swastik Engineering Works are maintaining high quality products with the brand name of 'Tiger' manufacturing various types of instrumentation hardware fittings. With more than three decades experience, we believe in continuously improving our products and services. So that customers requirements for safety and performance are satisfied under the brand name of 'Tiger'.
The reputation we enjoy for the excellence of design, material and workmanship of our product is the result of hard labour and careful study of the exact requirement of the various industries in the class of goods in which we are working. 'Tiger' Valves & Fittings are designed to withstand high-pressure service and are capable to satisfy various stringent tests like Pressure impulse, Vibration test, Vacuum test, Temperature cycle test, make & Remake test etc. as per BS 4368 Part IV at our in house testing facilities. The above tests have been periodically witnessed by various inspection agencies / consultants like, EIL, DNV, LRIS, BVQI, ONGC, BARC, BHEL, TOYO to name few.
In today modern world, applications are wide and that include Nuclear Power Plants, Refineries, Petrochemicals, Fertilizers, Thermal Power stations and may more and to meet their specific requirements, we are always trying to improve quality of the products with quality consciousness. We shall, at all time welcome a suggestion from any customer present or prospective, who could help us in bringing our products to their fullest satisfaction to give 'Tiger' valves the stamp of guarantee. 'Tiger' Fittings and Valves are available in variety of construction material ranging from SS (low carbon also), C.S. Monel, and Brass material are tested at reputed Government approved laboratories confirming to ASTM, ANSI, IS etc. standards.
