Socket Weld Fittings

QualityBest
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

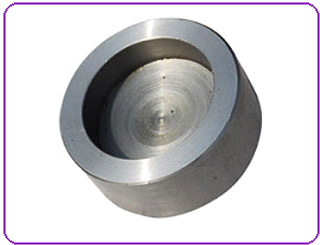

Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of Socket Weld Pipe Cap / End Cap. Neminox Steel & Engineering Co. are largest pipe fitting manufacturer for all type of industries in India. The whole manufacturing process is subject to a 100% quality control. ASME B16.11/BS3799 Socket Weld Fittings Pipe Cap Available in different dimensions and specifications. Types: Forged Cap, Forged Reducer, Forged Elbow, Forged Tee, Forged Insert , Forged Stub-Ends, Forged Return Bends, Forged Collar, Forged Cross.

View More Details

Send Enquiry

Company Information

Neminox Steel & Engineering Co.

Bhuleshwar, Mumbai, Maharashtra

5.0/5

(1)

View Number

Member Since 7 Years
Nature of Business Retailer
GST No. 27BQYPG7080H1ZM

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Nominal Diameter		Outside Diameter		Wall Thickness		Socket Bore	Water way Bore	Depth of Socket	Length Assem Nominal
Nominal Diameter		Dmin		Cmin		d1	d2	Jmin	L
DN	NPS	Socket	Threaded	Socket	Threaded	Socket	Socket & Threaded	Socket	Socket & Threaded
6	1/8	21.8	14.7	3.2	2.5	10.65	6.43	10	41.4
8	1/4	21.8	19.0	3.3	3.1	14.10	9.45	10	41.4
10	3/8	25.9	22.9	3.5	3.2	17.55	13.51	10	46.0
15	1/2	31.2	27.7	4.1	3.8	21.70	17.07	10	49.0
20	3/4	37.1	33.5	4.3	4.0	27.05	21.39	13	56.9
25	1	45.5	41.4	5.0	4.6	33.80	27.74	13	62.0
32	11/4	54.9	50.5	5.3	4.9	42.55	35.36	13	71.1
40	11/2	61.5	57.2	5.6	5.1	48.65	41.20	13	76.5
50	2	75.2	70.1	6.1	5.6	61.10	52.12	16	86.1
65	21/2	91.7	85.3	7.7	7.1	73.80	64.31	16	102.4
80	3	109.2	102.4	8.4	7.7	89.80	77.27	16	109.0
