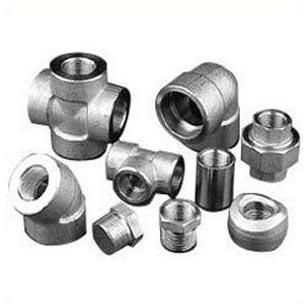

Socket Weld Pipe Fittings

Listing ID #1664744

We offer a qualitative range of Socket Weld Pipe Fittings that is manufactured as per the international standards to serve the requirements of the global clients. Our Socket Weld Pipe Fittings can be availed in different specifications and at competitive prices.

Range

Elbow Tee Reducing tee Coupling Half coupling End cap Reducing coupling, Barrel nipple

Hexagonal nipple Hexagonal bush Hexagonal head plug Sockolet Weldolet Threadolet Elbolet Nippolet

Features

• Optimal quality
• High performance
• Corrosion resistant
• Anti-abrasive
• Durable

Socket Weld fittings General
A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a valve, fitting or flange. In contrast to butt weld fittings, Socket Weld fittings are mainly used for small pipe diameters (small bore piping); generally for piping whose nominal diameter is NPS 2 or smaller.
To join pipe to valves and fittings or to other sections of pipe, fillet-type seal welds be used. Socket-welded joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.
Fatigue resistance is lower than that in butt-welded construction due to the use of fillet welds and abrupt fitting geometry, but it is still better than that of most mechanical joining methods.
Some Details of Socket Weld Fittings
Socket Weld Fittings are family of high pressure fittings are used in various industrial processes.

• They are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.
• They are used only in conjunction with ASME pipe and are available in the same size range.
• They are used in areas where pipe-work is permanent and are designed to provide good flow characteristics.
• They are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and seamless tubes which conform to the fittings chemical compositions, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.
• They are available in three pressure ratings: 3000lbs, 6000lbs and 9000lbs.

Advantages of Socket Weld fittings :

• The pipe need not be beveled for weld preparation.
• Temporary tack welding is no needed for alignment, because in principle the fitting ensures proper alignment.
• The weld metal can’t penetrate into the bore of the pipe.
• They can be used in place of threaded fittings, so the risk of leakage is much smaller.
• Radiography is not practical on the fillet weld; therefore correct fitting and welding is crucial. The fillet weld may be inspected by surface examination, magnetic particle (MP), or liquid penetrant (PT) examination methods.
• Construction costs are lower than with butt-welded joints due to the lack of exacting fit-up requirements and elimination of special machining for butt weld end preparation.

Fittings for Socket Weld Systems :

• Full-coupling
• Half-coupling
• Reducing coupling
• Reducer insert
• Union (MSS SP-83)
• Elbow 90°
• Elbow 45°
• Tee straight
• Cross
• Cap (End Cap)
