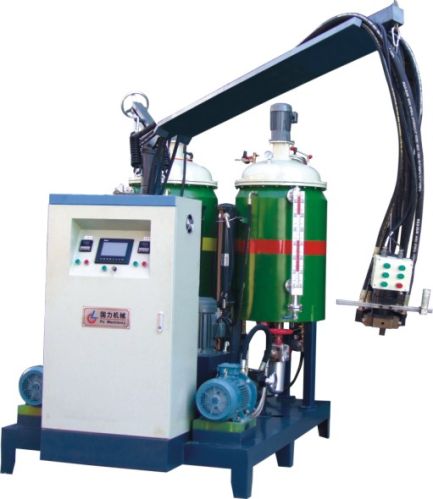

Soft and Comfortable Polyurethane Resilient Pillow Foaming Machine

We are offering soft and comfortable polyurethane resilient pillow foaming machine.
Name data remark
material mixing pressure 8～15mpa design pressure 31.5mpa
theoretic pouring materialt capacity 266～850gs
range of pouring material time enactment 0.01s～99.99s
range of material proportion adjustment ≥3：2～3：1 hand adjust by indication
pouring material measure precision ≤±1%
material route system working temperature can be setted
hydraulic pressure system working temperature ≤60℃
hydraulic pressure oil working pressure 18～22 mpa design pressure 31.5mpa
number of injection program setting working position 99pcs can be setted, by hand and automatism
air working pressure 0.5～0.8 mpa
electric total power ≥26kw
protection function a、hydraulic pressure double safeguard；b、without material self-protection；c、 pressure alarm；d、lock the pouring material pressure symmetrical range；e、stop gun automatic protection when power cut； f、 temperature automatic constant
g、high pressure and low pressure switch.
Pipeline clean method hand work
pouring material gun head self-clean l type high pressure injecting head thrice repeat mixing prevent blocking, prevent strand material, life of the machine: inject more than 600,000 times.
