Soft PVC Braided Hose Pipe Extrusion System

₹ 38 Lakh / Nos

MaterialPvc
Brand NameSai Machine Tools
Country of OriginIndia
Number Of FlowerPVC braided Hose Pipe Plant
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 15 Years
Nature of Business Manufacturer
GST No. 23AADCS9549L3ZS

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Number Of FlowerPVC braided Hose Pipe Plant
MaterialPvc
Brand NameSai Machine Tools
Max. output40kg/hr to 160kg/hr
Pipe Range Inches1/2
Motor Kw7.5kw+11kw, 11kw+11kw, 11kw+15kw, 15kw+15kw, 15kw+22kw
Screw Diameter50x65mm , 65x65mm, 65x75mm, 75x75mm, 75x90mm,

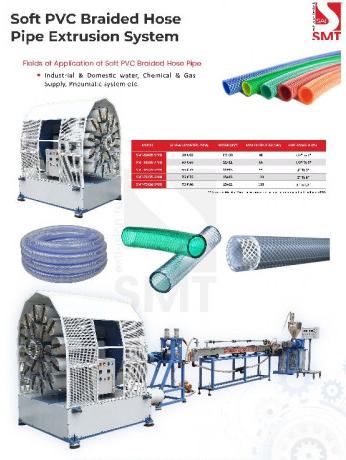

Soft PVC braided hose pipe production line consists of 2 extruders, die head, cooling water tank (MS/SS), haul off, high speed mixer, coiler machine etc. Pipe processing scope ф12-ф 250mm (½” to 10”), production capacity: up to 160kg/hr with specially designed screw and die head, inverter controlled ac motor, top brands electrical control units, the whole production line is stable in performance, excellent in quality. Suction hose pipe is mainly used for water supply in agriculture & irrigation and conveyance and delivery of waste, slurry, sludge, industrial and domestic water, chemical & gas supply, pneumatic system etc.

Specification :-

Screw Dia : 50x65mm , 65x65mm, 65x75mm, 75x75mm, 75x90mm,

Max. Output :- 40kg/hr to 160kg/hr

Motor KW : 7.5kw+11kw , 11kw+11kw, 11kw+15kw, 15kw+15kw, 15kw+22kw

Pipe Range inches : 1/2" to 10"

Soft PVC Braided Hose Pipe Plant Specification

MODEL	SCREW DIA MM	MOTOR KW	MAX OUTPUT KG/HR	PIPE RANGE INCH
SMT- 50X65 SPBH	50X65	7.5+11	40	1” TO 4”
SMT- 65X65 SPBH	65X65	11+11	80	1” TO 6”
SMT- 65X75 SPBH	65X75	11+15	95	2” TO 8”
SMT- 75X75 SPBH	75X75	15+15	120	2” TO 8”
SMT- 75X90 SPBH	75X90	15+22	160	3” TO 10”
