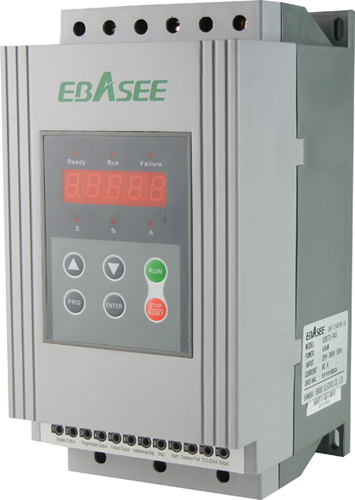

Soft Starter

Function:
standard: en60947-2:2000 5.5-30kw ce certified gb8898-1997 ccee certificated
rated current in (a): 23-1000a
rated power pe(kw):5.5-500kw
degree of protection: ip20(ip40 at request)
shock resisteance: 15kg, 11ms
ambient humidity: 95% no dew, no dropping water.
Intallation aperture: φ 6, φ 7 , φ 9
starting mode:
•current limiting type:limting starting current, ruduce starting voltage. Can be adjusted according to demand.
•ramp voltage type:start motor smoothly and gradually to reduce the impact on the grid caused by starting current, to prolong the operation life of mechanical transmission.
•heavy-load starting type: big startup torque
stopping type:
•normal.
•softstop
control type:
•input : passive switch singnal
•output: relay
system protection
a: short circuit protection: no external quick fuse needed, provides short circuit protection during starting or working or soft stopping stage and will send alarm signal.
b: ground fault protection: if there is any single-phase ground fault, it will send alarm before stopping running.
c: over voltage protection: if input voltage exceeds the rated voltage, it will send alarm or stopping running.
d: overload protection: if the motor is overload, it will give an alarm and stopping running.
e: phase failure protection: if there is any phase failure in the motor, it will send alarm and stopping running.
f: reverse phase protection: will not start the motor and send alarm if reverse phase happened.
quick selection:
connection:
