The company is a notable Solar Cell Tester supplier , Manufacturer and Exporter . Solar Cell Tester is used for testing and sorting of solar photovoltaic cells. Our Solar Cell Tester is controlled by....

View More Details

Send Enquiry

Product Details

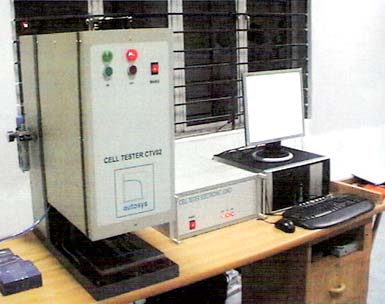

The company is a notable Solar Cell Tester supplier , Manufacturer and Exporter . Solar Cell Tester is used for testing and sorting of solar photovoltaic cells. Our Solar Cell Tester is controlled by computer, which examines the electric performance of photovoltaic cells under the simulated sunlight. The calibrated reference cell on the test plain is used for monitoring the intensity of the light. Our highly advanced Solar Cell Tester is designed and developed as per the international quality and norms.
Production Mode
Solar Cells can be sorted on one of the Parameters

Iload, VLoad, I max, Pmax

I-V Mode

I-V Curve
Short Circuit Current , Open Circuit Voltage
Load Current at Fixed Voltage
Maximum Power (Peak Power) (Imax)
Current & Voltage at Peak Power
Fill Factor, Cell Efficiency
Module Temperature & Corrected Temperature
Solar Insolation, Date and Time of Measurement

Technical Details

Testing Area	200 x 200 mm
Light Source	Halogen Lamp / Xenon Lamp (Pulsed)
Testing Range	0 - 1.00V x 0-10 A
Illumination Uniformity	+/- 3%
Reproducibility	+/- 0.5%
Software	MS Windows
Modes of Testing	Production Mode / I-V Mode
Production Mode	Cells can be sorted on one of the parameters - Iload, V Load, Isc, Imax, Pmax
I-V Mode	I-V Curve
	Short Circuit Current, Open Circuit Viltage
	Load Current, Power at Fixed Voltage
	Maximum(Peak) Power, Current & Voltage at Peak Power
	Fill Factor
	Cell & Module Efficiency
	Module Temperature & Corrected Temperature
	Solar Insolation, Date & Time of Measurement
