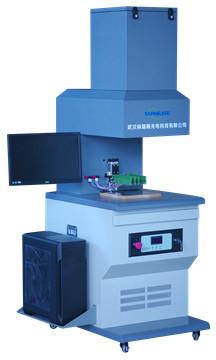

Solar Cell Tester, Packaging Type : gray or OEM

Solar cell tester
applications:
electric performance test and record for mono-si or poly-si solar cells.
Features:
- class a am1.5g irradiation spectrum;
- pneumatic bumper pin-contact, pin-contact, on the sunny side and planer contact on the rear side;
- 4-strand testing mode and 14-byte 4-channel high-speed synchronous acquisition;
- 10 preferences on display and testing data illustration in terms of sheets and curves;
- irradiance and temperature self compensating;
- vocal test reporting and screen counter for flashes;
- 247 tools uptime and 300,000 flashes for life-time of xenon lamp;
advantages:
- integrated design;
- human-centered design;
- function of measuring reverse current;
- easy operation and observation;
- footprint economy;
technical specifications:
items sct-2a
light intensity 700~1200wmã��ã�â² continuous adjustable
non-uniformity of intensity ã�â¢ã¯â¿â½ã�â¤3%
temporal instability stiã�â¢ã¯â¿â½ã�â¤2% [class a]
temporal instability ltiã�â¢ã¯â¿â½ã�â¤2%
consistency of testing ã�â¢ã¯â¿â½ã�â¤1%
pulse width of single flash 10ms
effective testing area 200mmã��ã¯â¿â½200mm
measuring voltagea 0v~0.8v(resolution 1mv)
measuring current 0ma~20a(resolution 1ma)
tested electric performances isc, voc, pmax, vm, im, ff, eff, temp, rs, rsh, ir
power supply ac220v50hz2kva
air supply 0.5-0.8mpa
