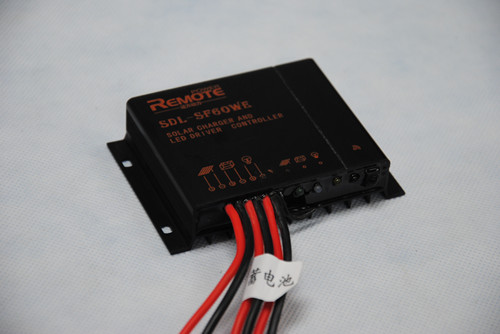

Contact SupplierWe are offering waterproof ip67 solar charge controller with built in led driver.
Feature
1.output power can be adjustable
2.led indicator easy to show the status of system
3.three phrase charging:boost,main,float
4.four working mode
5.temperature compensation can increase the charing efficiency and prolong the battery life
6.infrared remote control unit with lcd can read and reset the parameter of the solar controller.(optional accessory)
7.waterproof grade:ip67
specification:
model
sdl-sf60w solar charge controller with led driver
system voltage
12v; 24v;
power output
12v≤30w 24v≤60w
voltage output
(vin+5v)~60v
voltage distortion range
+-600mv
output current
≤1.2a
current output accuracy
.
