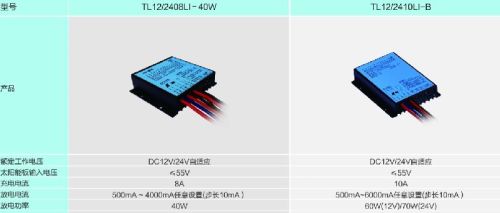

Contact SupplierStep-up constont current solar controller with led dirver
model cl122410li-a
input voltage dc12v24v auto
output voltage 15-70v (12v system) 30-70v (24v system)
self consumption average static power consumption 8ma
max. Charging current 10a
max. Output power 80w
max. Conversion efficiency 96%
output current error ∠3%
output current 150ma - 2800ma(programmable)
max. Solar panel 170wp(12v system) 340wp(24v system)
max. Solar panel voltage dc55v
working temperature -35℃ ~ 60℃
charging mode pwm mode
1. Waterproof ip67 2. lighting control and 3 time intervals control. 3. Led's output power is adjustable. 4. Most parameters are settable. 5. Integrated with led driver. 6. Suitable for led which is 15-60v29-60v 7. Optional function: automatically drop load's output power when battery is lower than 12.5v25v
