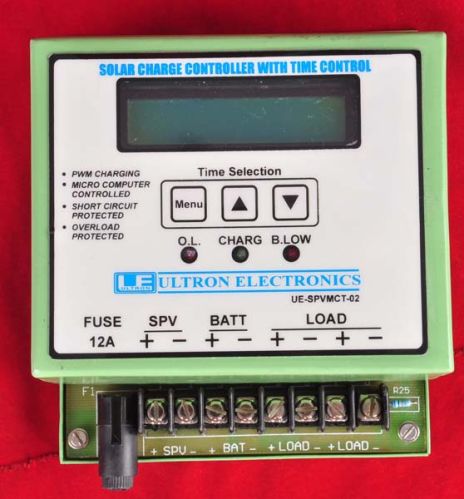

SOLAR CHARGE CONTROLLER WITH TIMER

SPECIFICATIONS FOR ULTRA SUN SAVER SOLAR CHARGE CONTROLLER
WITH TIMER UE-SPV-MCT-02
Ultron̢۪s Ultra Sun Saver is the Inida̢۪s leading small solar charge controller for both professional and consumer applications.
Ultra sun saver̢۪s technology provides;
 Exceptional Reliability
 PWM Battery Charging
 Consistent High Quality
The Ultra sun saver̢۪s advanced design delivers outstanding performance and value. The Ultra Sun saver̢۪s low cost made possible by Ultron̢۪s unique approach to design and manufacturing.
â€Â¢ ISO 9001:2008 quality programs
â€Â¢ Latest Power electronic technology
â€Â¢ Latest control and logic technology
â€Â¢ High volume manufacturing
Features:
12V and 24V, 6,10 and 20Amps
100% solid state
Series design (not shunt)
True 0 to 100% PWM duty cycle
Set point accuracy to 35mV
Rated for 25% over loads
No need to derate
Parallel for 40A or more
Micro processing controller pulse modulation wide – Frequency PWM Charge
Protective circuit of PV from reverse charging
Over loading protection
Over charge protection
Short circuit protection
Temperature compensation
Applying with various types of durable batteries
Real timer for load ON & OFF at required time within 24 hrs.
TECHNICAL SPECIFICATIONS:
a) Nominal Voltage : 12V or 24V DC
b) Max. Charging current : 5A or 10A
c) Deep Discharge protection : 10.5V/21.0V
d) Over Charge Protection : 14.4V/28.8V
e) Restart Of Charging : 12.5V/25V
f) Reconnection of Load : 12.5V/25V
g) Output load current : 5A or 10A Max.
h) Battery AH Rating : 50AH or 100AH Max.
i) Solar Panel : 120Watts Max.
j) Operating Temp. : 500 C
k) Self Consumption : 10ma
