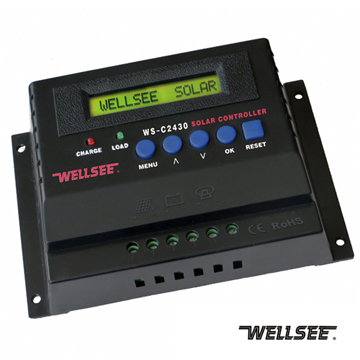

Solar Controller, Brand Name : wellsee

We are offering solar controller.
Functions:
1. Overload protection .
2. Short circuit protection
3. Converse discharge protection
4. Reverse polarity connection protection
5. Thunder protection.
6. Low voltage protection
7. Overcharge protection
8. Batteries stop and charge voltage hvd sets up
9. Charge and low voltage lcd sets up
10. Display the capability of the battery soc
11. Loads and comeback setups.
12. Intellectualized temperature compensation
13. Record and calculate the charged ah and display it on the lcd screen.
14. Record and calculate the discharged ah and display it on the lcd screen.
15. Cpu control and lcd display
technical index:
model
ws-c2430 20a
ws-c2430 25a
ws-c2430 30a
rated voltage
12v24v automatic voltage recognition
max load current
20a
25a
30a
input voltage range
12v-17v 24v-34v
length≤1m
charge loop drop
0.25v
length≤1m
discharge loop drop
0.05v
over voltage protection
17v 34v
full charge cut
13.7v 27.4v
low voltage cut
10.5v-11v 21v-22v
temperature compensation
-3mv°c cell
no load loss
≤20ma
max wire area
4mm2
ambient temperature
-25°c---+55°c
