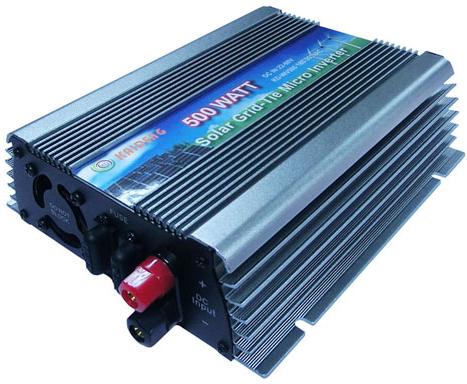

Solar Grid Tie Inverter, Brand Name : KD

We are offering solar grid tie inverter.
system function
display function
1, ac voltage display
when the 125vac led lit up, it means the ac output is 125v.
when the 230vac led lit up, it means the ac output is 230v.
2, outage display
when the fault led lit up, is means there is no electricity or the output is fail, and the inverter restart.
3, power shows
power output led: the 5 red leds take turns lighting, the quicker the lights move, the more power output.
4, ac frequency display
when the 50hz led lit up, it means the input frequency is 50hz.
when the 60hz led lit up, it means the input frequency is 60hz.
5, dc over-voltage display
when the fault led and the �high� led lit up, it means the dc input is over 62vdc
6, dc under- voltage display
when the fault led and the �low� led lit up, it means the dc input is low 22vdc.
7, power adjust display
when �st� led flashing, it means power is in adjusting condition.
when the �st� led and �high� led lit up, it means the power is increase.
when the �st� led and �low� led lit up, it means the power is decrease.
when �st� led long on time, is means the power is locked, and the inverter works.
wide voltage input(22-60vdc)
directly connected to the solar panels (do not need to connect the battery)
using precise dynamic differential pressure type mppt function, apl functions, the inverter automatically adjust the solar panels of maximum output power,simply connect the solar panel to the grid inverters. Do not need to connect the battery.
power automatically locked (apl) function
maximum power point tracking (mppt) function
automatically shut down when the power grid fault
when the city power system is in failure, the inverter will automatically turn off the output.
stack multiple machines
multiple small power inverters in parallel can achieve large output power.
