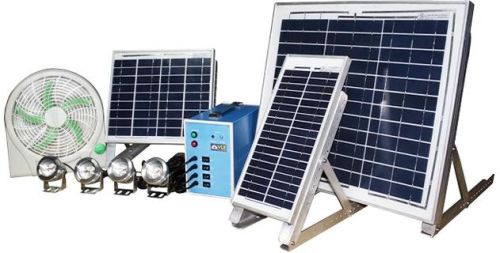

Solar Home Lighting System

We are offering freedom light system.
The fls are straight forward to install and operate, and are essentially plug and play.
the control center contains the charge controller, switches and connectors for lamps, low battery and charging led indicator lights, master on-off switches, system fuse, and solar panel and dc adaptor input, and as it can accommodate any of the three battery sizes it allows the client to upgrade very easily when a larger system is desired.
the sealed lead acid battery will continue to function for many years because of the low depth of discharge that has been designed into the system, thus making life so much easier for the clients and reducing their operating costs.
it may be noted that all four of the mnre flsã¢ï¿½ï¿½s have been designed to allow the client to charge a mobile phone once a day if required.
technical specifications of model 1:
led lamp / luminare : 1 number
3 watt lamp made of 3 cree q5 ledã¢ï¿½ï¿½s
electronics efficiency > 92% at 12v i/p
metal body helps as heat sink
lumens : 250 net output
more than 15 lux at a diameter of 2.5 mt
reverse polarity protection
solar panel : 1 number
maximum power : 6 wp
open circuit voltage : 21.6 volt
short circuit current : .35 ampere
central control unit: 1 number
battery : 12v, 7ah battery
low voltage cutoff : 12.10 volt
over charging cutoff : 14.4 volt @ 27 degree centigrade.
