Solar Hybrid Light Controller

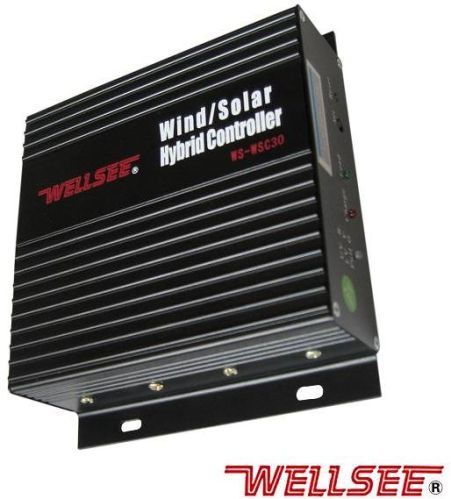

We are offering WS-WSC30 30A Wellsee WindSolar Hybrid light controller
Wellsee WindSolar Hybrid light controller (Wellsee WindSolar Hybrid intelligent controller)WS SWC series is a new product which is
designed and self developed by Wuhan WellseeNew Energy Industry Co.,Ltd with advanced control circuit. The new generation wellsee
windsolar hybrid intelligent light controller is different from other controllers, which is specially designed for windsolar hybrid street light
in a group of wind power,solar power, this controller also has light control+time control exact timing control function which can extactly
control loads turn onoff time (Optional).
Functions:
1. Microprocessor intelligent control, exactly control.
2. Anti-surge protection,short-circuit protection and reversed polarity protection.
3. Overload protection,Overcharge protection,overdischarge protection.
4. Turn on light at dask autotmatically and turn off light at dawn automatically according to light intensity.
5. Temperature compensation function.
6. Recognize the wind turbine charging voltage and charging current exactly with safe and complete multiple wind turbine brake
protection system.
Technical information:
MODEL
WS-WSC30 30A
System voltage
12V24V Automatic voltage recognition
Max charge current
30A
Max discharge current
30A
Rated power for wind turbine
400W ~ 800W（12V24V）
Charge off voltage HVD
14.4V 28.8V
Low Voltage Directive LVD
10.8V 21.6V
Low Voltage Restore LVR
11.8V 23.6V
Charge loop drop
＜300mV
Discharge loop drop
＜50mV
Overload protection
31.5V
Short-circuit protection
30A
Light operate
light control on + light control off
Light time control
Light control onoff + time control onoff
Time control classification
0.5 hours started, half an hour of one grade, up to 10 hours
Output route
single bulb.
