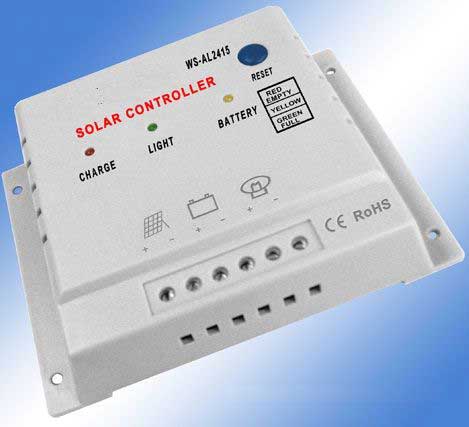

Solar Lighting Controller

The Solar Lighting Controller that we offer is designed using the latest technology. The Solar Lighting Controller fits for the solar lighting system that is automatically controlled below 280W for both lighting and solar panel. The Solar Lighting Controller offered by us is reliable and has neat design. We ensure that the Solar Lighting Controller that we offer complies with the industry standards. Functions

• Solar Lighting Controller can prevent the battery from over-charging and over-discharging
• Solar Lighting Controller can prevent reverse charging (the battery charges the solar panel)
• It can prevent reverse connection of the battery and solar panel
• It will start up the lighting system in the evening automatically according to the intensity of the light
• Solar Lighting Controller will shut down the lighting system according to the time setting or shut down the lighting system automatically when it is dawn
• It has an LET indicator of the working condition of charging and discharging

Indications

• One piece of Charge Indicator LED (mark: Charge). When it is bright, the battery is charged strongly; flickeringly means floating charge, no light means stop charging
• One piece of Load Indicator LED (mark: load). When it is bright, there is output and load can work; if LED goes out, means there isn’t output and the load cannot work
• Battery indicator : Red =under voltage Green =full Yellow =normal

Technical Specifications

System voltage	12V / 24V Automatic distinguish voltage
Max charge current	10A
Max discharge current	10A
Charge off voltage (HVD)	14.4V / 28.8V
Low Voltage Directive (LVD)	10.8V / 21.6V
Low Voltage Restore (LVR)	11.8V / 23.6V
Light operate	light control turn on + light control turn off
Light time control	Light control turn on/off + time control turn on/off
Time control classification	0.5 hours started, half an hour of one grade up to 10 hours
Out put route	single bulb
Ambient temperature	-2 C -+55 C
Safe degree	IP55
Quiescent dissipation	24mA
Max loop voltage drop	350 mV
Weight	280g
Size	134*100*31mm
