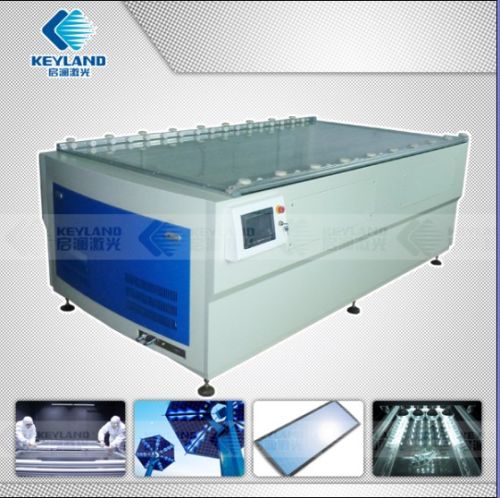

Solar Module Test Equipment, Solar Simulator

We are offering solar module test equipment, solar simulator.
China solar panel module tester cost
modle: gtm-b-2012/gtm-5a-2012
mainly used in electrical performance auto test and resuit record of solar mono-si ,poly-si or a-si cell module
pv panel tester equipment technology characters
5a-a gradespectrum
a grade unevenness degree of irradiance
a grade instablity degree of irradiation
a grade test error
a grade repeat test error
flash impulse continuous adjustable range 10~100ms
four lines measure;14-bit 4 channel high-speed synchronous collection card
8000 dates collection points
irradiance automatically compensation;temperature automatically compensating
voice counts off and prompts;counting prompts of flash time
24 continuous working ,xeop lamp have 300,000 times flash
touch-screen control
pv panel tester equipment technolog parameters
measurement parameters
effective test area:2000*1200mm/5w~300w
effective test range:5w~240w
measuring voltage:0~100v( resolution ratio 1mv)
measuring current:0~20a( resolution ratio 1mv )
test parameters:isc,voc,pmax,vm,im,ff,eff,temp,rs,rsh
source parameters
lamp spectrum:accord with iec60904-9 and jis8933(standand a)
light litensity:100mw/cm2
light intensit non-uniformity: ≤ ±2% ‹a›
light degree of irradiation:≤± 2% ‹a›
test parameters
test results consistency:≤±0.5%‹a›
test error of electrical properties:≤1% ‹a›
single flash time:10~30ms
testing spacing interval:5 seconds
