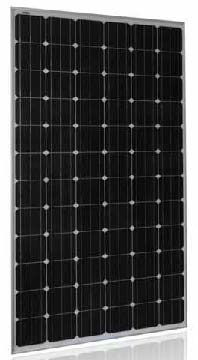

Solar panel, Dimensions : 65 X 39 X 1.5 Inches

Plus power tolerance (0-3%) to ensure the high reliability of power output

Modules certified by TUV to withstand high level of wind loads (2400 Pa) and snow loads (5400 Pa)

Easy installation and minimal maintenance with compatibility to industry standard inverters and mounting systems

Junction box and bypass diodes guarantee the modules free of overheating and “hot spot effect”

10Years Manufacturing Warranty

12Years Warranty,90% Power Output

25Years Warranty,80% Power Output

Guaranteed Performance

Special PV Module Insurances by world leading insurance company

guarantees the benefit of PV investors and PV module users

Recommended For

Utility Scale Ground Mounted

Modules’ excellent performance under low light environments (mornings,

evenings, and cloudy days) create better kWh/kW ratio and produce

average 2-3% more electricity in the field

Professional solar producer and solutions provider since

1992, reliable partner of global distributors, installers and

project integrators.

The most vertically integrated solar manufacturer inthe industry with production of ingots, wafer, solar cells and modules using both mono crystalline and multi

crystalline technology.

Manufacturing with international quality standards and environment management system: ISO 9001 and ISO 14001.

Global distribution with local warehousing, delivery and after sales services.

Minimal wiring effort required as the module has high reverse current resistance.

Most updated design with drainage holes in the frame ensures the modules to withstand various weather conditions.

Cell Type Mono crystalline 156×156 mm (6 inches)

Number of cells

Dimensions (A×B×C)

Weights

Front Glass

Frame

Junction Box

Connector

Output Cables

MECHANICAL SPECIFICATION

72 (6×12)

1956×992×50mm

23kg

3.2 mm Low iron tempered glass

Anodized aluminum alloy

IP 65, with bypass diodes

MC4 compatible

TÜV, length 900mm, 4.0mm²
