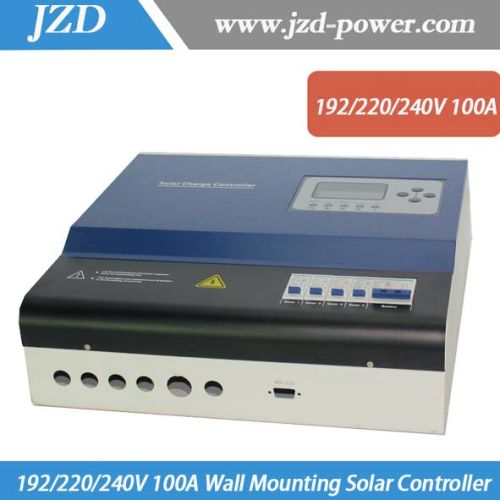

Contact SupplierWe offer solar power system.
Model
cp-192100
cp-220100
cp-240100
cp-384100
rated power(w)
19.2k
22.0k
24.0k
38.4k
rated charger current(a)
100
rated dc voltage(vdc)
192
220
240
384
solar input
max. Dc voltage(vdc)
≤350
≤400
≤436
≤700
charger voltage range(vdc)
160-350
183-400
200-436
320-700
4 circuits input
solar1,solar2,solar3,solar4
max. Input powercircuit(wp)
4.8k
5.5k
6.0k
9.6k
max. Input currentcircuit(a)
25
over charge protection voltage(vdc)
223.9
256.6
279.9
447.8
over charge recovery voltage(vdc)
219.2
251.2
274.0
438.5
dc output
rated output current(a)
50
low voltage protection(vdc)
175.4
201
219.2
350.8
high voltage protection voltage(vdc)
248.0
284.2
310.0
496
efficiency
>98%
protection function
charge over current, over voltage, low voltage, high voltage, over current, etc.
exhaust fan starting temperature
>45
operating environment temperature
0-40
storage environment temperature
-15 - +50
run storage environment
0-90% no condensation
machine size: l*w*h(mm)
417*360*118
package size: l*w*h(mm)
440*420*200
net weightgross weight (kg)
8.49.75
