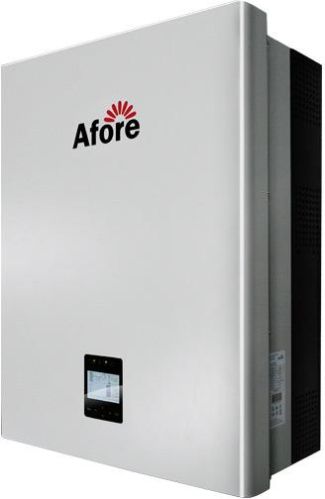

Contact SupplierWe are offering 15kw solar pv inverter,
input
max. Dc power [w]: 16500
max. Dc voltage [v]: 850
mppt voltage range [v]: 420~800
max. Dc current [a]: 32
number of mppt tracker strings per tracker: 16
output
power connector: three phases
max. Ac power [w]: 6100
nominal ac phase voltage range [v]: 3npe,230400; it:195~265; au:200~270 de:185~265
nominal ac frequencyrange [hz]: 50au: 47.5~51.5; it:45.0~55.0; de:47.5~50.2
max. Ac current [a]: 27
nominal ac current [a]: 22
power factor>0.99
output current thd99%
compliance
electromagnetic compatibility : en61000-6-16-3
anti-islanding protection: internal
general information
dimensions (hã�wã�d) [mm]: 718ã�580ã�215
enclosure: ip65
weight [kg]: 50
ambient temperature range: -20 � ~ +55 �
topology: transformerless
communication interface: rs485
night consumption [w].
