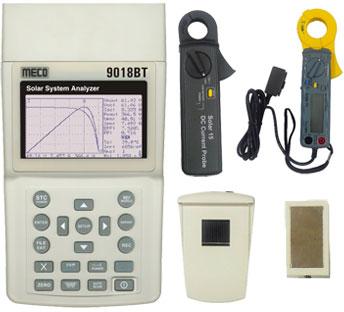

Solar System Analyzer

I-V curve test for solar system
Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability)
The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication (Bluetooth 2.1 + EDR Class 1)
The Remote Solar Detector is moisture-proof
Intelligent test logic with no personnel attendance required in the field
Solar system analyzer waits and tests the system until appropriate sunlight irradiance is detected
Max. voltage (Vpm) at Pmax, Max. current (Ipm) at Pmax
Voltage at open circuit (Voc), Current at short circuit (Isc)
Efficiency (%) calculation of solar system
Temperature measurement of solar panels
Irradiance measurement of sun light
Series resistance (Rs) calculation of solar panels
With data logging/open function, the I-V curves of solar system can be analysed / recorded for a period of time (e.g. 60 min.)
Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard
Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK or NO OK)
Users can set up the parameters of solar panels

Features:

Users can set up the series number of solar panels. Parameters of many solar panels can be measured in one measurement
The Irradiances and Temperatures of solar panels can be continuously measured, monitored and recorded
Continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases)
Calculate the efficiency of DC to AC power conversion and the efficiency of the max.output power
Built - in Calender Clock
Rechargable Lithium Battery, Low Battery Warning, AC Power Adaptor
Optical USB Cable for PC Communication
Solar Connector (optional)
With Power Clamps (SOLAR 15 DC Current Probe and SOLAR 21 AC Power Clamp), continuously measure / monitor / record the DC AC Power output of Solar System and the AC Power Output of Inverter (1 phase or balanced 3 phases); calculate the Efficiency of DC to AC Power Conversion and the Efficiency of the max.output power.
