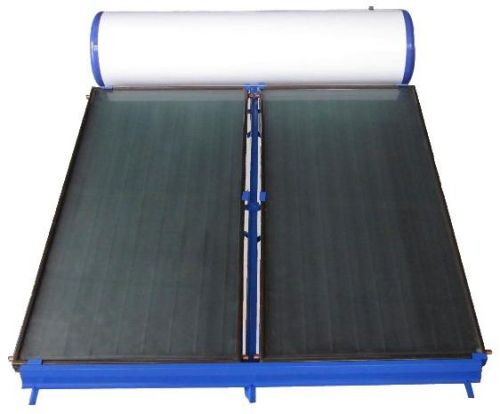

FLAT PLATE COLLECTOR TECHNICAL SPECIFICATION
1. Section 1.2mm thick Aluminium, Back sheet 0.46 mm thick Aluminium.
2. Insulation Rockwool 50 mm thick 48 kg density, Foil 0.05 mm thick Aluminium.
3. Flat plate collector fins (9 Nos), Header pipe Copper 24 SWG.
4. Glazing 1000 X 2000 X 4mm clear toughened glass, Glass beeding E.P.D.M. Rubber
5. Grommets E.P.D.M Rubber, Flanges Brass,Finishing Powder coating.
Ultrasonic welded with Nalsun coating,Copper pipe 24 SWG, copper strip 0.10mm Al. Strip 0.2 mm.
Tank - Inner tank
: 1.2mm C.R.C.A sheet with co2 welding inside coated with prime guard coating 2.5mm for pressurized systems.
:- Connecting pipes: SS. :- Insulation: 50 mm thick PUF.
:- Outer Cladding: Pre-coated laminated sheet (color: Half white) Mirror finish
:- End Caps: GI with PP coating. :- Support Structure: Mild Steel with powder coating.
