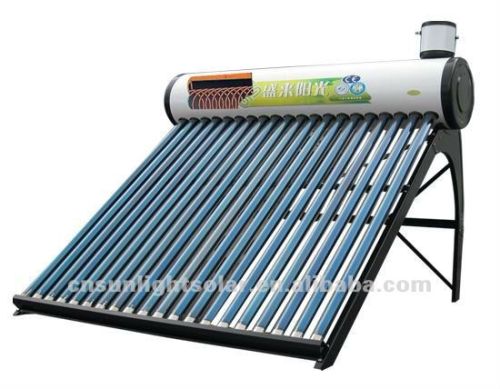

Solar Water Heater, Brand Name : SUNLIGHT

We are offering solar water heater.
1, main tank is non-pressure, inter copper coil can bear 6~8bar work pressure.
2. The material of inner tank is sus304 2b food grade stainless steel with 0.5mm thickness.
3. The material of outer tank is sus304 stainless steel with 0.31mm thickness.
4. The material of stand frame is stainless steel with 1.2mm thickness. The angle of the frame can be changed in the production as the local latitude of customers, we can design the suitable angle for the customers. We also could provide the adjustable frame.
5. The thickness of polyurethane foam is 55-60mm.
6. Copper coil diameter 12mm, thickness 0.8mm, length 25~35mm
7. Hen water flows through the coil, it absorbs heat from the water inside the solar collector tank, so the solar collector tank is a thermal store.
8. Easy plug-in installation.
9. It is very popular in torrid zone and warm area, such as asia, africa and etc.
10. We offer the accessories of this system, such as electric heater, assistant tank, controller, magnesium and etc.
components
the system comprises of solar heat pipe tube,porcelain storage tank,t/p valve and intelligent controller.
description
the system use copper heat pipe for energy collection. Heat pipe transfer the heat to the water that is stored in tanks. Pressurized system is popular in the area with high water pressure, or in the cold area.there is no water in the tube, so no worry for freezing or tube broken. The system operates at high pressure.
solar water heater system working principle
1.the pressurized water tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.
2.vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized water tank. In this case, the water inside the tank becomes hot
3.no water in the heat pipe makes the whole system could bear pressure
