Here the collector is made of double layer borosilicate glass tubes evacuated for providing insulation. The outer wall of the inner tube is coated with selective absorbing material. This helps absorption of solar radiation and transfers the heat to the water which flows through the inner tube.

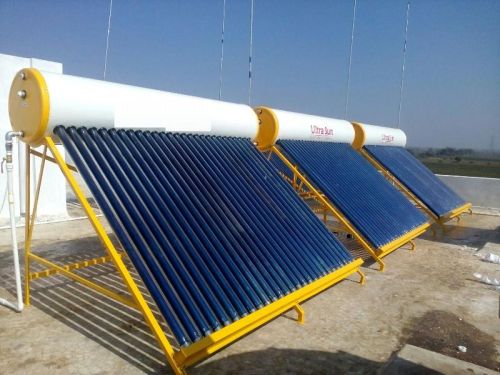

Evacuated Tube Collector based Solar Water Heater : Solar water heating is now a mature technology. Wide spread utilization of solar water heaters can reduce a significant portion of the conventional energy being used for heating water in homes, factories and other commercial & institutional establishments.
Application of Solar Water Heating System:
Solar Water Heating System can heat the water up to 80C.
Solar water heaters (SWHS) of 100-500 litters capacity are suited for domestic application.
Larger systems (above 500 LPD) can be used in restaurants, canteens, guest houses, hotels, hospitals, dairies, industry etc.
| Number of Tubes in the ETC | |
| For tubes with OD: 47 mm, ID: 34 mm and Length: 1500 mm | Minimum 7 numbers for each 50 LPD capacity of system. |
| For tubes with OD: 58 mm, ID: 47 mm and Length: 1800 mm. | Minimum 5 numbers for each 50 LPD capacity of system |
| Type of Coating (Selective Absorptive coating. | ALN-SS-Cu (Three Layer) |
| Tube bottom cap material / Thickness | H.D.PP. / 3 mm |
| Tube Seal | Silicon Rubber |
| Storage Tank (Inner tank, directly coupled with the tubes) | |
| Fabricated using Argon arc or metal inert gas (MIG) welding Thickness when fabricated in SS 304 or 316 using Argon arc or metal inert gas (MIG) welding Thickness when fabricated using other type of welding Thickness when fabricated in GI (Internal coating: Epoxy paint stable up to 150ºC) | 0.5 mm, minimum up to 300 LPD. 1.2 mm, minimum above 500 LPD. 0.8 mm, minimum up to 300 LPD. 1.5 mm, minimum above 500 LPD. 2.5 mm, minimum up to 500 LPD. 4.0 mm, minimum above 500 LPD. |
| Storage Tank (Outer cladding) | |
| -Material - Thickness | Al/SS/FRP/GI coated sheets Suitable for handling the load |
| Storage Tank Insulation | |
| -Material - Characteristic | PUF 55 mm thick / Rock wool 100 mm thick Night temperature drop should not be more than 5-6°C. |
| Stand / Frames | Should be either of non-corroding materials (viz. SS, Aluminium) or have corrosion resistant protective coating |
| Model | Products | Nos. of ETC tube | Collector area (Meter2)* |
|---|---|---|---|
| 9ss/100SWH | 100 Liter Type : ss 304/MS/G.I. Puff : 50 mm Stand : G.I. with powder coating Heater : Electric back up 2Kw Outer sheet: SS/G.I. with powder coated ETC tube size: 58 mm x 1800 mm | 10 | 1.5 |
| 9ss/150SWH | 150 liter Type : ss 304/MS/G.I. Puff : 50 mm Stand : G.I. with powder coating Heater : Electric back up 2Kw Outer sheet: SS/G.I. with powder coated ETC tube size: 58 mm x 1800 mm | 15 | 2.25 |
| 9ss/200SWH | 200 liter Type : ss 304/MS/G.I. Puff : 50 mm Stand : G.I. with powder coating Heater : Electric back up Outer sheet: SS/G.I. with powder coated ETC tube size: 58 mm x 1800 mm | 20 | 3 |
| 9ss/300SWH | 300 liter Type : ss 304/MS/G.I. Puff : 50 mm Stand : G.I. with powder coating Heater : Electric back up 2Kw Outer sheet: SS/G.I. with powder coated ETC tube size: 58 mm x 1800 mm | 28 | 4.3 |
