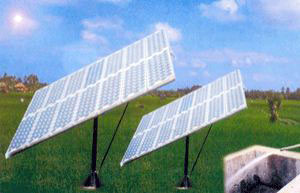

Solar Water Pumping System, Motor Type : DC

We offer modular and at the same time, flexible Solar Water Pumping System. We offer shallow-well type as well as deep-well type Solar Water Pumping Systems. These Solar Water Pumping Systems are maintenance free. The Solar Water Pumping System does not need any outer source of power. The product itself generates and feeds D.C. power to the pump. The Solar Water Pumping Systems are suitable for areas where conventional grid supply is either erratic or non-existent. Applications

• Drinking water
• Irrigation
• Agriculture related use
• Horticulture
• Animal Husbandry
• Poultry farming
• High value crops
• Orchard
• Seri-culture
• Aqua-culture
• Farming
• Battery charging & Lighting when pump is not required for water lifting

Technical Specifications

Module type	Shallow well		Deep well
Model	SP SC-1	SP SC-2	SP SP-ACS-1	SP ACS-3	SP ACS-4	SP ACS-5
SPV Array Wp	900	1800	1050	1200	300	1800
Suction Head	6 Meter	6 Meter	NA	NA	NA	NA
Delivery Head	9 Meter	14 Meter	50 Meter	50 Meter	30 Meter	50 Meter
Discharge	69000 LPD at 10 Meter Head	138000 LPD at 10 Meter Head	26000 LPD at 30 Meter Head	33000 LPD at 30 Meter Head	7800 LPD at 30 Meter Head	42000 LPD at 30 Meter Head
Type of Motor	DC Surface Centrifugal	DC Surface Centrifugal	AC Submersible	AC Submersible	AC Submersible	AC Submersible
Type of Module	Single Crystalline Silicon	Single Crystalline Silicon	Single Crystalline Silicon	Single Crystalline Silicon	Single Crystalline Silicon	Single Crystalline Silicon
Type of Structure	Manual Tracking	Manual Tracking	Manual Tracking	Manual Tracking	Manual Tracking	Manual Tracking
Optimum Operating Voltage	36 V DC	60 V DC	60 V AC, 3 f	60 V AC, 3 f	60 V AC, 3 f	60 V AC, 3 f
