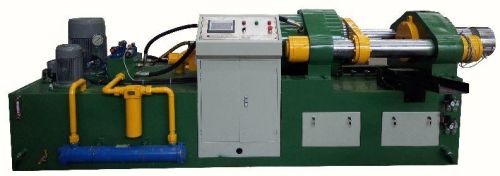

Solder Wire Making Machine, Solder Wire Extrusion

1.Main oil vat: Adopt plunger type cylinder(Germany technology).
  Vat diameter 450mm,rated working pressure 210Mpa.Hydraulic system adopts steady speed structure to assure the extruding stability of the metal & flux flow.
2.Inside oil vat: Diameter 120mm,rated working pressure 21Mpa.With the advantage of quick oil injecting to shorten the idle running time and enhance the productivity.
3.Hydraulic variable pump one set, hydraulic plunger pump one set.
4.Hydraulic valves:8pcs
5.Speed control valve:Adopt Rexroth technology variable valve control.
 6.Motor:Adopt top brand China(Dong Guan Motor),two sets at:11KW-6&5.5KW-4.
 7.Temperature control:Adopt Japan RKC temperature control system,for extruder head,front crossbeam and flux tank three phases.
8.Flux tank:Adopt stainless steel,oil heating to enable the flux temperature invariableness. With flux status checking window to assure it will be always in best status.
9.Extruder mould:Adopt heating processed rough model with special heat treatment.
10.Extruding billet size:diameter 85mm*200mm or 90mm*220mm.
11.Material feeding:Adopt hydraulic photoelectricity double assurance control.Fully automatic control for the feeding process.
12.Electric equipment:Adopt Taiwan brand SHSI,Japan RKC,Schneider brand(simple switches adopted China CHINT brand).
13.Current requirement:380V,50HZ(can make per customer's application for different country)
14.Machine weight:8T Total power: 20KW Spare part with machine:
