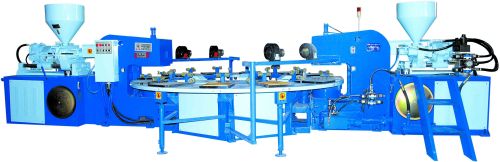

Sole Tread Molding Machine JIC 512

1.JIC 512 Tread molding machine
2.With the material of TPR to produce single or double color tread and children sole or thin sole .
3.Adopt double proportion hydraulic system
4.the biggest advantage of this machine is energy saving ,so the cost can be greatly decreased .
Material --------TPR
Station number--------12 or 16 or 20
Screw diameter --------60mm 50mm
Screw speed --------0-190rpm
Max injection ---------565cm3 300cm3
Injection hyraulic---------105MPa 95MPa
Clmpping force ---------80T
Motor power ---------11*2kw
heating power ---------5.6*2kw
Temperature rate-------4 point
Max mold size ---------
Machine size ---------7500*3050*1820mm
Total weight ---------8500kg
