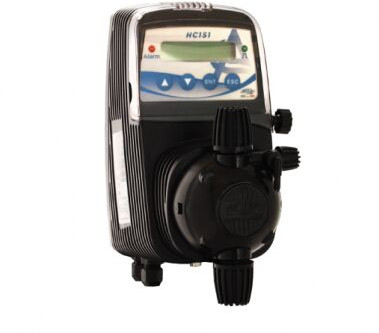

Solenoid Driven Dosing Pumps – Hc 151 Pi Ma

Multifunction solenoid digital dosing pumps. Dosing mode selectable in constant or proportional mode.

• Renforced PP housing, suitable for aggressive working enviroments;
• Input: level probe, inhibit, standby, flow sensor, injection;
• Output: alarm or dosing relay;
• Statistics;
• Password;
• Language and Unit measure selectable;
• Calibration flow-rate;
• Simplified setting by user menu;
• Alphanumeric display, 2 lines 16 characters, to simplify pump managing, during the working mode and during the Programmation;
• Power supply 230 Vac. Upon request: 110V;
• IP65 protection degree;
• Wall mounting bracket supplied in installation kit;
• Manual bleed valve (priming).

WORKING MODE

• Constant flow rate On/Off mode or Cycle mode (time/pause dosing, Ton-Toff);
• Proportional to an analogical signal 4-20 mA. Dosing range completely selectable by the user;
• Proportional to a digital signal (water-meter pulse-sender).MODE: ppm, 1xN (multiplication of received pulses), 1:N (division of received pulses), 1xN(T) (proportional dosing between two pulses), 1xN(M) (with frequency self-regulation for excessive input pulses);
• Batch Mode (selecting number of strokes or quantity or frequency, all in time): external mode (start by external signal) and manual mode (start by arrow keys “UP, DOWN”);
• Selectable Alarms: Level (with “reserve”, early warning), Flow (flow sensor input), Strokes (max number of strokes).

Standards:

• n° 2004/108/CE Direttiva EMC

• n° 2006/95/CE “DBT Low Voltage Directive”

• n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE”

• no. 2004/108/CE EMC directive

• no. 2006/95/CE “DBT Low Voltage Directive”

• no. 2011/65/UE, 2012/19/UE “RoHs and WEEE directives”

Model

CODE DESCRIPTION

AD96100000000 PDE HC151-1 PI-MA 02-08/05-05/07-02 230V PP-GL-VT

AD96101000000 PDE HC151-2 PI-MA 07-04/08-02/10-00 230V PP-GL-VT

AD96102000000 PDE HC151-3 PI-MA 03-12/04-10/05-08 230V PP-GL-VT

AD96103000000 PDE HC151-4 PI-MA 10-04/12-02/14-00 230V PP-GL-VT

AD96107000000 PDE HC151-5 PI-MA 02-20/2,5-18/03-15 230V PP-GL-VT

AD96108000000 PDE HC151-6 PI-MA 10-10/12-08/14-05 230V PP-GL-VT

AD96109000000 PDE HC151-7 PI-MA 20-03/25-02/35-00 230V PP-GL-VT

AD96110000000 PDE HC151-8 PI-MA 04-20/4,5-18/05-15 230V PP-GL-VT

INSTALLATION KIT

ADSP6000078 PE TUBE D. 4×6 2MT

ADSP6000546 PVC CRYSTAL TUBE D. 4×6 2MT

ADSP6000001 FOOT VALVE PP-VL-VT 4×6

ADSP6200007 INJECTION VALVE M1/2″ PP-VL-VT 4×6

ADSP6020221 WALL BRACKET HC150-897-997-999-100

ADSP6000041 ANCHORS AND SCREWS

ACCESSORIES AND SPARE PARTS

ADSLG4 LEVEL PROBE SWITCH w/2 m cable + BRACKET A-SL

ADBAS100 FOOT BRACKET HC150-797-897-997-999-100

ADLASM10B0 COMPLETE SUCTION LANCE WITH C-PROBE LEV.-S/BNC T-A (60/100L-H700) GLVT 4X6

ADLASM30B0 COMPLETE SUCTION LANCE WITH C-PROBE LEV.-S/BNC T-A (2/300L-H940) GLVT 4X6

ADTANK010 A-TANK 1 100 LITRES

ADTANK020 A-TANK 2 200 LITRES

ADTANK030 A-TANK 3 300 LITRES

ADSP9000100 HC150/797/897/997 PUMP HEAD 2-14 PP-GL-VT

ADSP900P000 HC150/797/897/997 PUMP HEAD 2-14 PVDF-PTFE-VT

ADSP900S001 PUMP HEAD 1-14 PVC-CE-VT AUTOMATIC DISCHARGE
