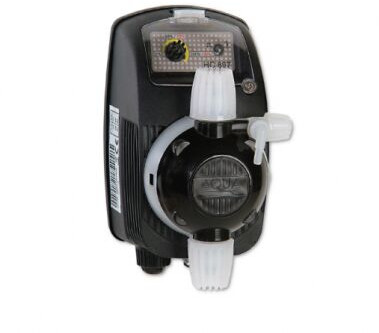

Solenoid Driven Dosing Pumps – Hc 897

 Analogical metering dosing pump with constant flow rate;
• Level probe input;
• Power supply: 220VAC – 50/60Hz. Upon request 110V;
• On-Off switch;
• IP65 protection degree;
• Analogical interface by knob and a LED bicoloured;
• Manual priming valve;
• Wall or foot mounting (brackets included in the kit);
• PVDF BODY PUMP – high chemical compatibility;
• FIXING BRACKET – to simplify the installation;
• PBT CASE – high mechanical resistance-eco-friendly-ergonomic low flammability;
• BUILT-IN PIPE HOLDER – safe and clean installation;
• REMOVABLE CONNECTIONS – easy maintenance of the pump.

Standards:

• n° 2004/108/CE Direttiva EMC

• n° 2006/95/CE “DBT Low Voltage Directive”

• n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE”

• no. 2004/108/CE EMC directive

• no. 2006/95/CE “DBT Low Voltage Directive”

• no. 2011/65/UE, 2012/19/UE “RoHs and WEEE directives”

Model

CODE DESCRIPTION

AD89000010000 HC897-1 02-08/05-05/07-02 230V PVDF-PTFE-VT

AD89001010000 HC897-2 07-04/08-02/10-00 230V PVDF-PTFE-VT

AD89002010000 HC897-3 03-12/04-10/05-08 230V PVDF-PTFE-VT

AD89003010000 HC897-4 10-04/12-02/14-00 230V PVDF-PTFE-VT

AD89007010000 HC897-5 02-20/2,5-18/03-15 230V PVDF-PTFE-VT

INSTALLATION KIT

ADSP6000078 PE TUBE D. 4×6 2MT

ADSP6000546 PVC CRYSTAL TUBE D. 4×6 2MT

ADSP6000028 FOOT VALVE PVDF-PTFE-VT 4×6

ADSP6200031 INJECTION VALVE M1/2″ PVDF-PTFE-VT 4×6

ADSP6020221 WALL BRACKET HC150-897-997-999-100

ADBAS100 FOOT BRACKET HC150-797-897-997-999-100

ADSP6000041 ANCHORS AND SCREWS

ACCESSORIES AND SPARE PARTS

ADSLG1 LEVEL PROBE SWITCH w/2 m cable + BRACKET A-SL without CONNECTOR

ADLASM1000 COMPLETE SUCTION LANCE WITH LEVEL SWITCH PROBE – WITHOUT CONNECTOR T-A (60/100L-H600) GL-VT 4X6

ADLASM3000 COMPLETE SUCTION LANCE WITH LEVEL SWITCH PROBE – WITHOUT CONNECTOR T-A (2/300L-H940) GL-VT 4X6

ADTANK010 A-TANK 1 100 LITRES

ADTANK020 A-TANK 2 200 LITRES

ADTANK030 A-TANK 3 300 LITRES

ADSP900P000 HC150/797/897/997 PUMP HEAD 2-14 PVDF-PTFE-VT

ADSP900S000 HC897 PUMP HEAD AUTOMATIC BLEED PVC-PVDF-VT
