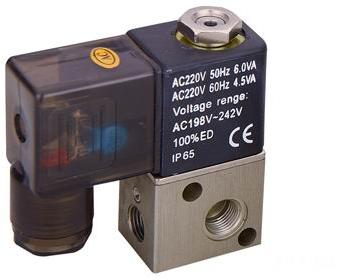

Solenoid valve

We are offering solenoid valve,
3v1 series solenoid valves have two options, 3v1-m5 and 3v1-06, valve body are processed special mirror plate and horniness treatment. Choose the imported sealing, min friction drag, long working life, all thread standards are available, g, npt, pt etc. Din connector type and flying leads type, the common working cycles is up to 10 millions.
Specification:
model:
3v1-m5, 3v1-06
working medium: 40 micron filtered air
motion pattern: direct drive type
joint pipe bore: m5:m5, 06:g18
air outlet diameter: 1.2
operating temperature range: -10~60°c
lubrication: not necessary
working pressure: 0~0.8mpa
max. Pressure resistance: 1.2mpa
voltage range: ±10%
power connection form: connector type
protection classinsulation: ip65f class
power consumption: ac:4.5vdc:3w
material of body: aluminum alloy
highest action frequency: 10 cyclesec
shortest excitation time: 0.05second.
