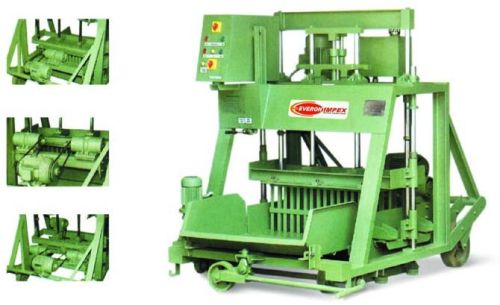

Everon Impex Automatic Solid Block Making Machine

We are offering solid block making machine. solid block making machine this is an egg laying type hydraulic operated concrete block making machine on wheels, which will lay block on the concrete floor and move to the next laying. Any type of concrete blocks can be produced with consistent quality by fixing different types of concrete mould and ram in the machine. technical specifications : 1060 model single vibrator double vibrator triple vibrators total power 3 phase 415 v 7.5 h.p 8.5 h.p 10 h.p hydraulic motor 5 h.p 1440 rpm 5 h.p 1440 rpm 5 h.p 1440 rpm vibrator mould motor 2 h.p 2880 rpm 3 h.p 2880 rpm 3 h.p 2880 rpm vibrator ram motor - - 1.5 h.p 2880 rpm travel motor 0.5 h.p 1440 rpm 0.5 h.p 1440 rpm 0.5 h.p 1440 rpm weight 1300 kg (approx 1450 kg (approx) 1600 kg (approx operating pressure 140 kg/cm³ moulding area 1060 x 600 mm dimensions 1750 x 1475 x 1750 mm production capacity 50 – 60 stroke / hour 400 x 200 x 100 mm 10 block / stroke 400 x 200 x 150 mm 6 block / stroke 400 x 200 x 200 mm 5 block / stroke
