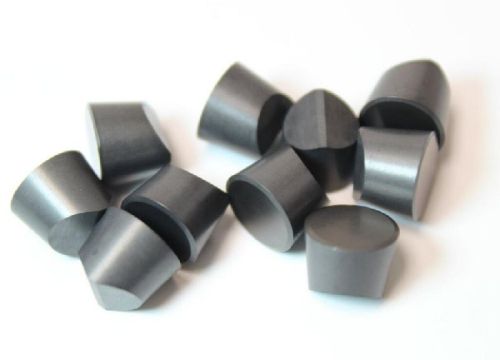

Machining Brake Disc Solid Cbn Inserts, Packaging Type : black

We are offering solid cbnpcbn inserts(rcgxrcmx) for maching brake disk, rolls
solid cbnpcbn inserts(rcgxrcmx) for maching brake disk, rolls
features:
1. Long working life.
2. Uniform surface finish.
3. Reduces machine down time.
4. Highly improved work piece quality and excellent dimensional control.
5. Increase productivity.
6. High material removal rate.
7. Lower cost per piece.
Application:
maching hardened steel, gray cast iron, powder metal etc. Suitable for interrupted and rough machining.
Hot-types: rcgx 090700, rcgx 120700
compared with the traditional cutting inserts, solid cbn diamond inserts offer many advantages thanks to its higher flexibility and more simple automation effort, and precising cuts ensure workpiece's accuracy.
Advantages:
- very high hardness, excellent wear resistance, low friction coefficient,
- perfect thermal stability,
- high speed cutting, continuous processing.
Cbn diamond insert is the best choice for rough machining cast iron and steel related materials.
pcbn inserts:
introduction of pcbn inserts:
pcbn is made by high pressure high temperature sintering of cubic boron nitride with a binder pahase, and there are mainly tow groups of binders, namely metal binder and ceramic binder. Cbn and diamond are very similar in crystal structure, chemical bond and lattice parameters, thus they perfotm quite similar hardness and strength,. In cutting applications, the wear resistance of pcbn exceeds 50 times that of tungsten carbide.
Application of pcbn inserts:
pcbn is typically recommended to machine ferrous materials such as hardened steel components over the range 45 to 70hrc and grey cast irons. The material combines high hot hardness, chemical stability and abrasion resistance to provide an effective solution for machining these very different work-piece materials.
