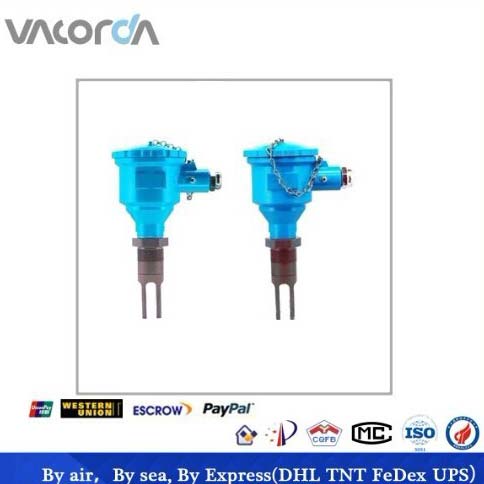

Solid Level Switch

Efficient working and consistency of flawless performances are the features that define the Solid Level Switch. The company is known as a highly distinguished Manufacturer & Supplier of Solid Level Switch. The Solid Level Switches are highly durable and the range can be availed at highly competitive prices on a timely basis.
Specifications

• Supply voltage : direct current 24 VDC; alternating current 220VAC,50/60Hz
• Power consumption : direct current supply : 0.25W (24V)
• Alternating current supply : 1.5W (220V)
• Operating temperature : standard type : -40~80^o;
• Medium temperature type : -40~130^oC
• Environment temperature : -40~70^oC
• Operating pressure : -0.1~5MPa
• Medium density : ≥0.7g/cm3
• Liquid viscosity : ≤10000mm2/s
• Output way : SPTD relay
• Output capacity : 220 VAC 3A;24VDC 0.5A
• Electrical interface : M20×1.5
• Explosive-proof grade : flame-proof type: EXdIIBT4
• Intrinsic safety type : EXiaIICT6
• Protection grade : IP65
• Process connection : thread Installation
• Above HG20592~20635-97 DN40, users please indicate when place the orders for other flange standards (such as GB,JB/T,HGJ,ANSI,DIN and etc).
• Material of interface liquid : stainless steel
• Material of the junction box : aluminium alloy
