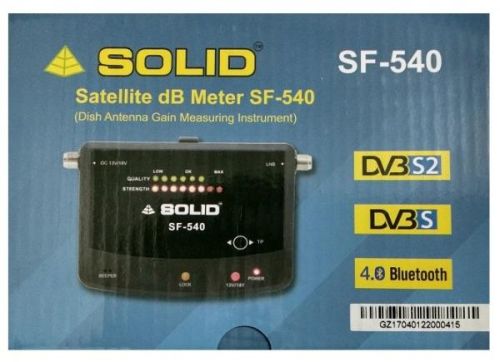

SOLID SF-540 Satellite dB Meter With Bluetooth Interface

Solid sf-540 satellite db meter
(dish antenna gain measuring instrument)
model no. Sf-540
this satellite db meter has bluetooth interface and can be set and used via android app which can be download from
google play - download application now
.
Direct selection of desired satellites on the smartphone.
Additional measurement values such as level (in db), cn, ber and mer.
Selection of the individual transponders of the respective satellites
more other satellite and tp can be added by mobile app
individual transponders of the respective satellites are available
new transponders can be added to the respective satellites
sound signal can be switched on or off
specifications:
frequency range : 950~2150 mhz
input level range : 44 ~ 110 db
symbol rate : 1 ~ 45 msps
operating voltage : 1218v dc
impedance : 75ohm
input connectors: f type (coaxial)
operating temperature : 0 degree c to 60 degree c.
other features:
low noise figure
signal strength and signal level led indicator
signal lock led indicator
13v 18v led indicator
beeper for remind signal lock function support
1 satellite 4tv present
warantee : 30 days from date of delivery
to know how to install? or how to use? - click here
