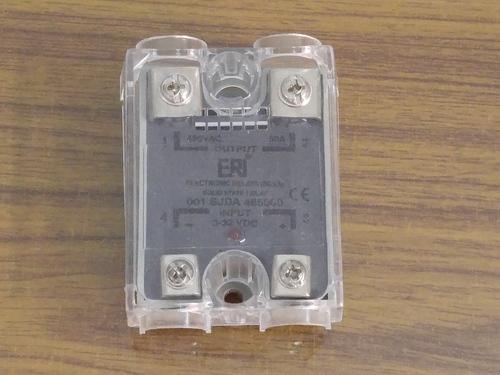

Solid State Relay (10-50 Amps)

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

With us, clients can stay assured for secure, safe and hassle free transactions. Our payment procedures are easy to use and guarantee confidentiality of the transaction. An emerging name in the....

View More Details

Send Enquiry

Product Details

With us, clients can stay assured for secure, safe and hassle free transactions. Our payment procedures are easy to use and guarantee confidentiality of the transaction. An emerging name in the market, our organization is involved in offering Solid State Relay (10-50 Amps) within the most lucrative deals.

Features:

Opto Isolation 4000 VAC
Zero Voltage Turn ON/Random Turn ON
Safety Cover to Isolate live Terminals
LED for Status Indication
Input Reverse Polarity protected for DC Input Relays
Chasis/DIN Mountable with Integral heatsink
Built - In Snubber
Steady performance
Minimum power dissipation
Smooth finish
Robust design

Additional Information:

Minimum Order Quantity - 10 No(s)
Approx. Rs 500 / No(s)

Specifications

Inexpensive ECO Series SSR's 10-50 Amps (240/480 Vac)
Input Specifications				Output Specifcations
Packages/ Part No.	I/P ON Vdc	I/P OFF Vdc	I/P Curr ma	VDRM Vpk	IT A	VTM Vac	ITSM A	IDRM ma	IHO ma	DV/DT V/ms	I²t A²s
Packages/ Part No.	I/P ON Vdc	I/P OFF Vdc	I/P Curr ma	VDRM Vpk	IT A	VTM Vac	ITSM A	IDRM ma	IHO ma	DV/DT V/ms	I²t A²s
ECO 001 JDA332500	3-32	1	1-20	600	25	1.6	250	10	50	200	250
ECO 001 JDA334000	3-32	1	1-20	600	40	1.6	400	10	50	200	664
ECO 001 SJDA335000	3-32	1	1-20	600	50	1.8	500	10	100	250	1250
ECO 001 JDA482500	3-32	1	1-20	800	25	1.8	250	10	100	475	250
ECO 001 JDA484000	3-32	1	1-20	800	40	1.8	400	10	120	575	664
ECO 001 JDA485000	3-32	1	1-20	800	50	1.8	500	10	100	250	1250
