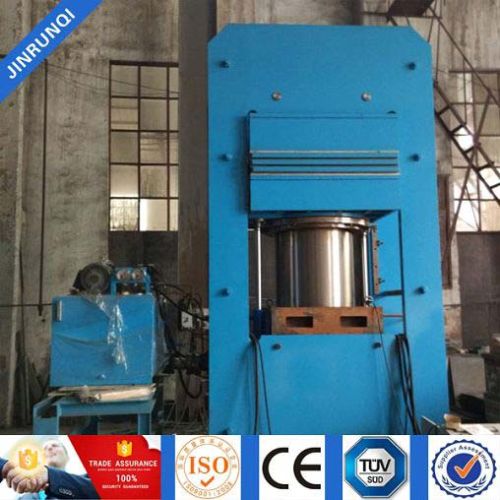

Solid Tyre Curing Vulcanizing Press Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Owing to our reliable transportation facilities, we are able to deliver the orders at the desired destination and on promised time. We have a massive inventory in Shandong(China), and thus, we are capable of presenting the best in class range.

View More Details

Send Enquiry

Specifications

Parameter	YLL-8/4000	YLL-5/6000	YLL-4/8000	YLL-3/10000	YLL-1/30000
Clamping force KN	4000	6000	8000	10000	30000
Hydraulic pressure MPa	20	16	16	17	17
Diameter of piston mm	500	710	800	870	1500
Stroke of piston mm	1000	1140	950	700	850
Heating platen area mm2	750x750	975x975	1250x1250	1600x1600	2060x2060
Number of layer	8	5	4	3	1
Daylight mm	270	458	550	550	1200
Heating type	steam	steam	steam	steam	steam
Heating temperature ^oc	150-180	150-180	150-180	150-180	150-180
Steam pressure MPa	0.8	0.8	0.8	0.8	0.8
Power of motor	11	11	11	15	22
