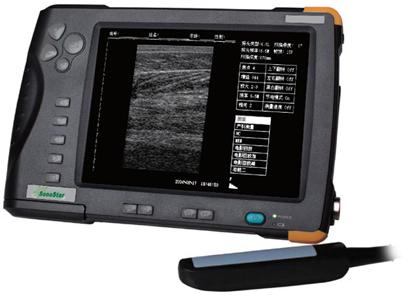

Contact SupplierProduct features:
-7 inch tft screen
-pretty and very light
-full digital imaging technology, crystal-clear image
-can work with backfat probe
-low power consumption
-2g large volume storage image
-built-in battery
-solid shell and structure
-waterproof(optional)
-high cost-effective
specifications:
display size: 7 inch tft
scanning manner: electronic convex array, electronic linear array
working frequency: 2.0mhz~10mhz
display mode: b, b+b, b+m, m, 4b
scanning range: convex array 60°~150°
amplification factor:1.0, 1.2, 1.5,2.0
gain control: 8 segments tgc and overall gain can be adjusted respectively
image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc
image gray-scale: 256 levels
scanning line number: 512 linesframe
frame rate: 30 framessecond
digital scanning conversion: 512×512×8 bits
memory capacity: ≥2gb.
