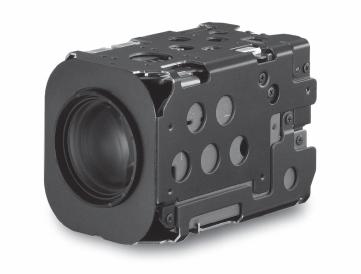

Sony Fcb-ex1020p 36x Color CCD Block Camera Module

SONY FCB-EX1020P Camera Specifications:
* Image Device: 14 type EXview HAD™ CCD (Progressive Scan)
* Effective Pixels: 380,000
* Digital Zoom: 12x (432x with optical zoom)
* Horizontal Viewing Angle: 57.8° (wide end) to 1.7° (tele end)
* Sync System: InternalExternal (V-lock)
* Electronic Shutter: 11 to 110,000 s, 22 steps
* White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
* Gain: AutoManual (-3 to 28 dB, 2dB steps)
* Wide Dynamic Range: Auto Mode ISPS Mode
* Backlight Compensation: OnOff
* Privacy Zone Masking: OnOff (24 positions, 8 positions per screen) 14 Colors + Mosaic
* Character Generator: Mode: OnOff (White Balance, Gain, etc.); Title: 11 Lines (20 characters per line)
* Flicker Cancel: Auto
* Focus System: Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
* Camera Operation Zoom Switch: Zoom Tele, Zoom wide
* Picture Effects: E-flip, Nega Art, Black & White, Mirror Image, Color
Sony FCB-EX1020P Video Output Specifications:
* Lens Value: 36x optical zoom
* SN Ratio: More than 50 dB
* Minimum Illumination: 1.4 lx (typical) (F1.6, 50 IRE)
* Video Output: VBS: 1.o Vp-p (sync negative); YC
* Signal System: NTSC (FCBEX1020FCB-EX1020), PAL (FCBEX1020PFCB-EX1020P)
* Horizontal Resolution: 540 TV Lines
Sony FCB-EX1020P Interfaces Specifications:
* Camera Control Interface: VISCA (TTL signal level) Baud Rate: 96Kbs, 19.2 Kbs, 38.4 Kbs; Stop bit: 12 bit selectable
Sony FCB-EX1020P General Specifications:
* Dimensions (W x H x D): 50.0 mm x 57.5 mm x 87.9 mm
* Weight: 230 g
* Operating Temperature: -5° C to 60° C (32° to 122° F)
* Storage Temperature: -20° to 60° C (-4° to 140° F)
* Power Consumption: 6 to 12 V DC 3.0 W (motors inactive, 4.0 W (motors active).
