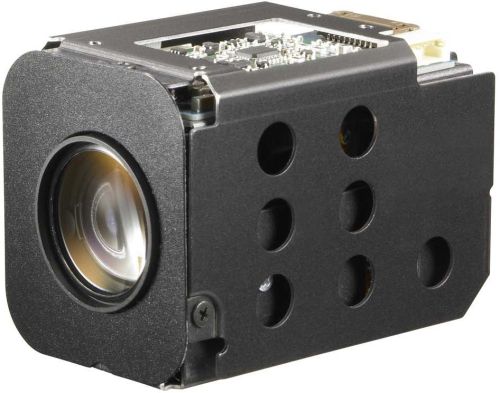

Sony FCB-EX11DP 10X MINI Colour Zoom Module Camera

SPECIFICATIONS:
The SONY FCB-EX11DP Camera:
* Backlight Compensation OnOff
* Character Generator OSD: 11 Lines (20 characters per line)
* Camera Mode display: ONOFF
* Digital Zoom 12x (120x with optical zoom)
* EV Compensation -10.5 to 10.5 dB (1.5 dB steps)
* Effective Pixels Approx. 380000 pixels
* Electronic Shutter 1 to 110000 s, 22 steps
* Exposure Control: Auto, Manual, Priority Mode, Bright, EV Compensation, Backlight * Compensation, Slow AE, Flicker Cancel Auto
* Focus System: Auto (Sensitivity: normal and low), One-push AF, Manual, Infinity, * Interval AF, Zoom Trigger AF
* Gain Auto Manual (-3 to 28 dB 2 dB steps)
* Horizontal Viewing Angle 46° (wide) to 4.6° (tele)
* Image Device 14-type EXview HAD CCD
* Minimum Object Distance 200 mm (wide); 1.0 m (tele)
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image
* Privacy Zone Masking On Off (24 positions)
* Sync System InternalExternal (V-lock)
* White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
SONY FCB-EX11DP General
* Dimensions (W x H x D) 1 716 x 1 58 x 2 38 inches (35.9 x 40.8 x 59.2 mm)
* Operating Temperature 32 to 122 °F (0 to 50 C°)
* Power Consumption 1.9 W (motors inactive); 2.8 W (motors active)
* Power Requirements DC 6 to 12 V
* Storage Temperature -4 to 140 °F (-20 to 60 C°)
* Weight 3.3 oz (95 g)
SONY FCB-EX11DP Interfaces
* Camera Control Interface VISCA (TTL signal level); Baud rate: 9.6 Kbs; 19.2 Kbs; 38.4 Kbs; 1 or 2 Stop bit selectable
SONY FCB-EX11DP Video Output
* Horizontal Resolution OnOff (On: 530 TV lines)
* Horizontal Resolution Value 530 TV Lines
* Lens Value 10x
* Minimum Illumination 1.0 lux
* SN Ratio More than 50 dB
* Video Output VBS: 1.0 Vp-p (sync negative); YC
