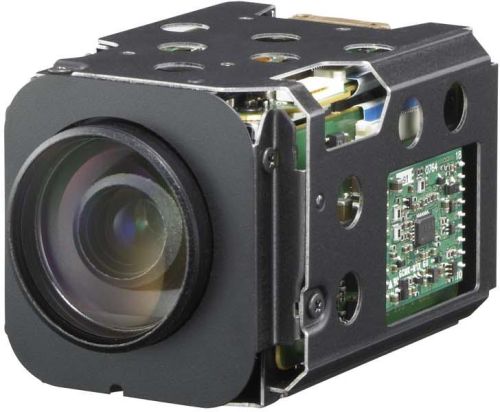

Sony Fcb-ex20dp CCD Colors Camera Module

We offer Sony Fcb-ex20dp Ccd Colors Camera Module.
The SONY FCB-EX20DP Camera:
* Backlight Compensation: OnOff
* Character Generator: Mode display OnOff (White Balance, Gain, etc.) Title display Max 11 lines (20 characters lines)
* Digital Zoom: 12x (120x with optical zoom)
* EV Compensation: -10.5 to 10.5 dB (1.5 dB steps)
* Effective Pixels: Approx. 380,000 pixels
* Electronic Shutter: 11 to 110,000 s, 22 steps
* Flicker Cancel: Auto
* Focus System: Auto (Sensitivity, normal, low), One-push AF, Manual, Infinity,Interval AF, Zoom trigger AF
* Gain: Auto Manual (-3 to 28 dB, 2dB steps)
* Horizontal Viewing Angle: 50º.0 (wide end) to 800 mm (tele end)
* Image Device: 13 type Super HAD CCD
* Lens Mount: 10x Optical Zoom (f=5.1mm wide to 51.0mm tele) F1.8 to F2.1
* Minimum Object Distance: 15mm (wide end) to 800 mm (tele end)
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image
* Privacy Zone Masking: On Off (24 position, 8 position per screen, 14 colors & mosaic)
* Sync System: InternalExternal (V-lock)
* White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
Sony FCB-EX20DP General
* Dimensions (W x H x D): 49.5 x 43.1 x 67.2 mm (1-1316 x 1-34 x 2-34 inches)
* Operating Temperature: 0º C to 50ºC
* Power Consumption: 6 to 12 V DC2.4W (motors inactive), 6.5W (motors active)
* Storage Temperature: -20º C to 60ºC
* Weight: 140 g (5 oz)
Sony FCB-EX20DP Interfaces
* Camera Control Interface: VISCA (TTL Signal level), baud rate: 9.6 Kbs, 19.2 Kbs, 1 or 2 stop bit selectable
Sony FCB-EX20DP Video Output
* Horizontal Resolution: OnOff (On: 530 TV Lines)
* Minimum Illumination: 160 s, 150s mode: 0.25 lx (typical) (F1.8, 50 IRE)
* SN Ratio: More than 50 dB
