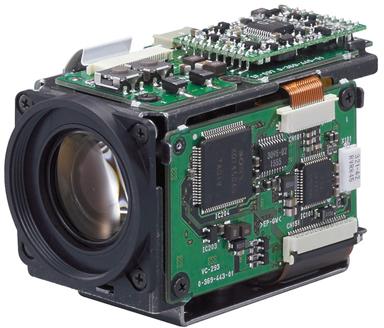

Contact SupplierWe are offering sony mini 10x ccd industrial camera.
Comsony-camera-seriessony-fcb-ix10ap-mini-10x-ccd-industrial-camera.html
sony fcb-ix10ap features
* 14 type super had ccd
* compact and light weight
* 40x zoom ratio (10x optical, 4x digital)
* minimum illumination at 2.0 lx (typical)
* key switch control compatibility
* high speed serial interface (maximum 38.4 kbs) and ttl signal-level control (visca protocol)
* electronic shutterslow shutter
* on-screen display (datetimetitle)
sony fcb-ix10ap specification:
* image sensor: 14 type super had ccd
* number of effective pixels (h x v): approx. 440,000 pixels
* len: 10x zoom f=4.2 (wide) to 42mm (tele), f1.8 to f2.9
* digital zoom: 4x (40x with optical zoom)
* angle of view (h): approx. 46 degrees (wide end) approx. 5.0 degrees (tele end)
* min. Object distance: 10mm (wide end), 1000mm (tele end)
* sync. System: internal
* min. Illumination: 2.0 lx (50ire)
* sn ratio: more than 50 db
* electronic shutter: 11 s to 110,000 sec. 22 steps
* white balance: auto, atw, indoor, outdoor, one push, manual
* gain: automanual (-3 to 28db, 2db steps)
* ae control: auto, manual, priority mode, bright, ev compensation, back light compensation
* ev compensation: -10.5 to +10.5db (1.5db steps)
* back light compensation: onoff
* privacy zone masking: onoff
* flicker cancel: auto
* focusing system: auto (sensitivity :nor, low), one-push af, manual, infinity interval af, zoom trigger af
* picture effect: neg. Art, black & white, mirror image
* camera operation switch: zoom tele, zoom wide
* video output: vbs:1.0vp-p (sync negative) yc output
* camera control interface: visca (ttlrs-232c signal level) baud rate 9.6kbps, 19.2kbps, 38.4kbps stop bit 12 selectable
