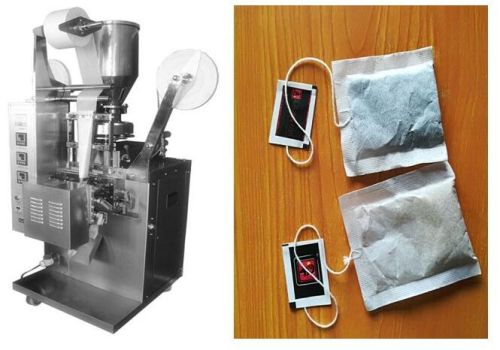

SP-11 Tea Bag Packaging Machine

SP-11 tea bag packing machine
Feature
The whole process of bag making, metering, filling, sealing, slitting, counting and packaging can be automatically and continuously completed. The finished product is with string and tag.
Application scope:
It is used in brewing bag packaging for all kinds of granular tea (including broken tea), coffee (not powder), Chinese herbal medicine (granules, etc.), ginseng extract, etc.
Technical Parameters:

• Model:SP-11
• Packaging material:Heat sealable filter paper
• Machine material and material contact parts are stainless steel
• Metering device Measuring cups (cups are mainly suitable for uniform small particles, such as Banlangen, etc.)
• Packing speed:30-45 bags/minute
• Packing capacity: 1-4g/bag (specifically based on the material, because different proportions of different materials are different)
• Packing size:L50-90mm W47-80mm
• Label size:20×20mm
• Line length:160mm
• Packing form:Trilateral seal
• Power supply:220V single phase 50/60Hz 1.5Kw
• Motor:220V/550W

Applicable packaging materials:

• Filter paper: heat-sealing tea filter paper, can choose the thickness of the filter paper with the thickness of the material, up to 23gsm, minimum 16.5gsm;
• Tea bag cotton line: pure cotton thread, the main specification is 21s/4;
• Label paper: generally 70 grams, can be thickened or thinned according to customer requirements, can be printed according to customer design draft;
