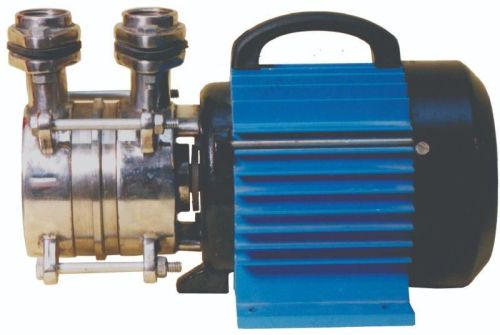

Electric Polished SP-Series Self Priming Pumps, For Water, Industrial, Voltage : 220V

Self Priming Pumps Features :

• All wetted parts of pumps are made from lost wax process (investment casting), so surface finish is excellent. Smooth flow path/ hydraulic passage and no casting defects likeblow holes, cracks etc. are present.
• Centripetal / regenerative impeller for better suction.
• Pumps will be normally available in CF-8m /CF-8 (Gun metal,
• Alloy-20) and also in other material as per customer's requirements.
• Single /multistage pumps to handle crystal clear liquids for high pressure duties.
• Very quick priming & no need of foot valves.
• Very high suction capacity up to 8 meters without much noise
• Various types of sealing arrangements as per customer's liquid's characteristics.
• Normally fitted with carbon/ceramic seal faces with teflon cup and viton rubber.
• Pumps are available in monoblock and in bare type also with flameproof motor.
• All motors are of "TEFC" type
• Pump can be offered with electro polishing for some special requirements.
• Can handle temperature up to 80oC
• Trolley mount available.
• Also available with 120 Volt / 60 Hz.
• Custom built pumps are available, Mud pumps.

Applications :

All clear liquids without solid suspensions like diesel, petrol, LPG, oil, solvents, syrup, dm water, chemicals, steam boiler feeding, evacuation of condensate water, boosting of pressure, as a drum/barrel pump.
