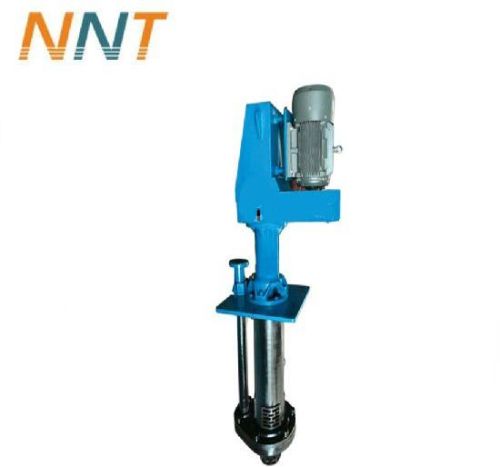

SP Vertical Sludge Pump 40PV-SP

Small rubber vertical slurry pump specifications
Pump size: 40-300mm
Capacity: 17-1267m3/h
Head: 4-40m
Materials: Cr27, Cr28, rubber liner
Brief introduction of Small rubber slurry pump
The SP(R) series Small rubber slurry pump are vertical, centrifugal slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurries. These sump pump have no need of any shaft seal and sealing water. The pump casing of type SP pumps are made of wear-resistant metal. The wear parts are made of high chromium for the SP series and are rubber lined for the SPR series.
Features of Small rubber slurry pump
1. It is vertical shaft pump.
2. Works well in water without shaft seal or seal water.
3. All the flow passage components are made of anti-abrasion metal.
4. Suitable for working in deep water/liquid conditions with rubber liner.
5. Designed base on standard type, equipped with guide bearing, it can work stable and smoothly.
6. The guide bearing needs to be attached with flushing device.As this careful design, this centrifugal vertical
slurry pump can be used to convey corrosive slurry and work well even as the suction volume is not enough.
Good performance small vertical slurry pump 65V-SPR with inner and outer R55 basket
Applications of Small rubber slurry pump
* Transport thick liquid, heavy oil, oil residue, dreggy liquid, slurry mortar, quicksand and other corrosive
liquid or fluid with mud or sand.
