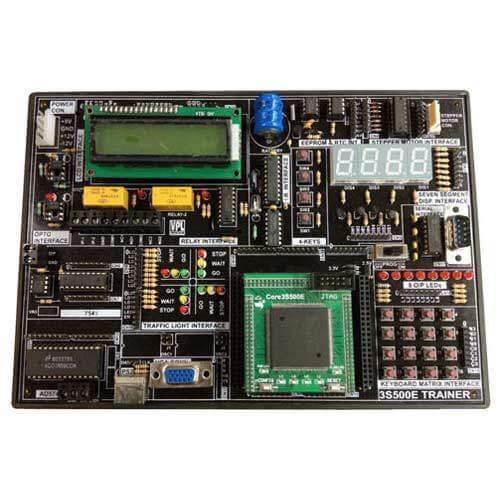

Spartan 3S500E Based FPGA Trainer Kit (VPL-Spartan3S500)

Spartan 3S500E based FPGA Trainer Kit is a powerful digital system design platform built around a Xilinx Spartan 3S500E FPGA. The VPL-Spartan3S500 is ideally suited to embedded processors like Xilinx's 32-bit RISC processor. The on-board I/O devices like LCD, Keyboard, LEDs, Stepper Motor etc. allows user with a wide range of designs to be completed without the need of any additional components.

System Specification:

• – Based on Spartan3S500E with PROM XCF04 and 50MHz Oscillator.
• – Four Seven Segment Display Interface
• – LCD Display Interface
• – 4×4 Matrix Keyboard Interface
• – Output LED’s 8 Nos.
• – 8 Chanel ADC Interface
• – DAC Interface
• – Four Data Switches
• – Relay Interface
• – Opto Interface
• – I.R. Interface
• – Traffic Light Interface
• – Stepper Motor Interface
• – LED Matrix Interface (Optional)
• – At24C16 Serial EEPROM
• – Real Time Clock
• – RS-232 Interface using Rx/Tx of MCU for uploading/downloading
• – USB/Parallel Port based Programming for downloading files.
