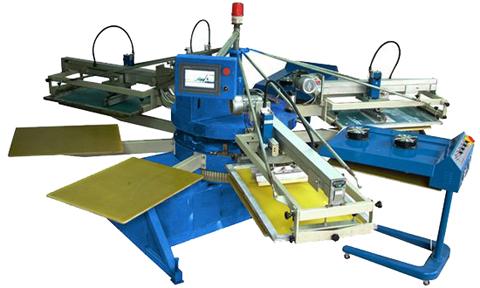

Spe Automatic Textile Screen Printer

We are offering spe automatic textile screen printer.
Applications:
this equipment series is suitable for printing on all kinds of textile
products like t shirt, cloth, socks, umbrella, pvc plate, label, bags
and so on.
advantages:
1, heavy-duty steel structure and tough clamps system to keep the frame steady angles on horizontal & vertical during printing
2, touch screen control centre and indepentent versatile membrane control system in each printheads
3, turn table driven by servo motor, electrical running printhead and micro color-to-color registration sytem with +-0.02mm clearance.
4, real-time productin data and self-diagnostic alarming system.
5, loading and flash curing time control, high production and easy operation.
6, printflood speed and pressure calibrated adjustment
7, frontback stroke length adjustment and easy operation, reducing fatigure.
package:
2 sets wooden case without fumigation
moq:
1 set
delivery time:
20-45 days ningbo seaport
main global markets:
europe & africa & south america
model spe-1048 spe-15610 spe-15812
print colorstation 4-68 4-810 6-1012
max. Image area 500×700mm 400×600mm 400×600mm
pallet size 600×800mm 500×700mm 500×700mm
frame size 680×980mm 580×880mm 580×880mm
air source ≥0.8mpa ≥1.0mpa ≥1.0mpa
max. Output 700pcsh 700pcsh 700pcsh
main power 2.0kw 2.0kw 2.9kw
unit dryer power 13.5kw 13.5kw 13.5kw
overall size ￠4500×1850mm ￠4600×1850mm ￠4800×1850mm
gross weight 1800kg 2400kg 2600kg
