Contact SupplierZhengwei is a professional manufacturer of connectors,Audio combo jack,Speakon,PowerCon, cable plug,RCA jacks,phone jacks,etc.

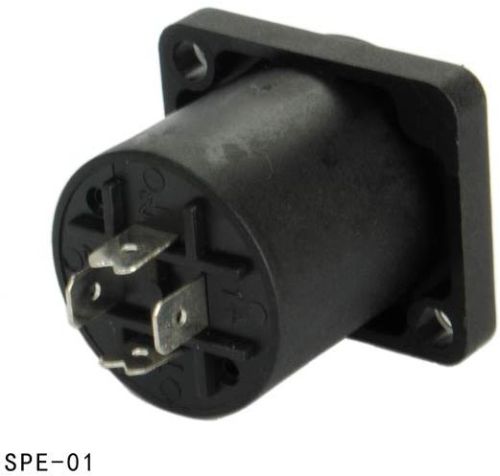

Detail of Speakon Connector :
1. plastic housing, brass retention lug
2. various grouding options
3. most cost-effective series
4. selective gold plated contact and PCB termination area for best conductivity and solder ability
5. saves rack space by combining 2 connectors in one housing
6. plastic housing flammability UL 94 V0
Spec. Of Spekon socket :
Temperature: -30~80C
Withstand voltage: AC 1500V(50Hz)min
Rated Voltage: AC 50V
Insertion and Extraction Force: 20N
Contact Resistance: 0.03 Ohm
Insulation Resistance: 100M Ohm
Life: 5000 times
