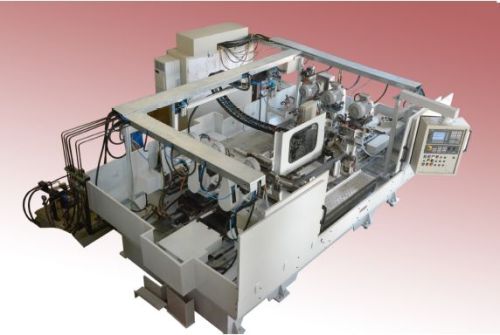

Special Purpose CNC Drill Tap Machine For RTB

Component is loaded manually in the fixture. Fixture is mounted on hydraulically operated shuttle slide. At drilling station 5 nos. hole will be drilled to camber plate from both side. Drilling cycle will be rapid feed-feed-rapid return. Then fixture moves to tapping station where 4 nos. tapping operation will be carried out. Tapping operation is pitch controlled. And fixture slide will return to home position.
