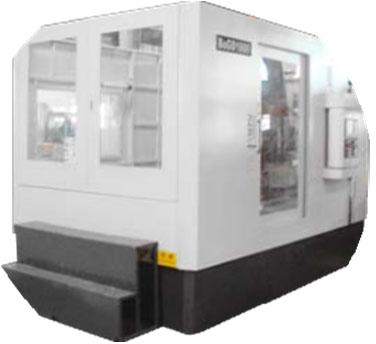

Special purpose machine

We are offering special purpose machine.
The special features:
the machine is suitable for reducer parts' multi-working surface milling, drilling, boring, reaming, tapping, bidimensional,3d surface and so on.multi-process high precision, high speed and high efficiency processing, this machine is the ideal automobile industry processing equipment.
1 machine body adopts meehanite casting iron structure and rigidity box structure design,many times artificial aging treatment,good shock absorption strong, and the overall good rigidity.machine tool dynamic column layout,columns moving fast, good rigidity.
2 main shaft adopts high-speed precision spindle,nickel chromium molybdenum alloy steel,and heat treatment process,has a high tensile strength reach up to 90kgm².the spindle is equipped with four front bearing,the two rear bearing ensure the spindle rotation accuracy has high rotation precision and rigidity under the condition of high speed running.
3 taiwan cnc circular dividing table 90°×4, rat tooth plate positioning,alignment accuracy. Can choose of 1°×360 or 0.001° circular dividing table.
4 toolchanger use taiwan knife library cam manipulator,reliable performance, short tool change time.
5 three axis adopt taiwan c3 level ball screw add long double nut pre -tighten,ensure excellent location accuracy.
6 use japanese nsk p4 level precision oblique angular ball bearing pre -tighten installation. Symmetry of the axial and radial pre -tighten ensure under high-speed continuous operation without noise.
7 x, y, z axis ues taiwan h level of linear guide,move speed fast , high precision, good rigidity, is conducive to rapid cutting.
8 totally enclosed electrical cabinet,supplemented with.
